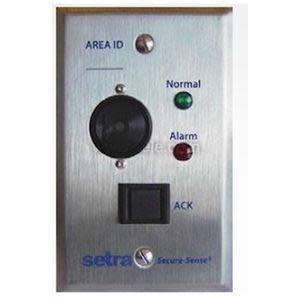

Remote Annunciator For The SRPM
Brand:Setra
MPN:SRAN
SKU:SRAN
product specifications
Mount
Wall
Sensor Type
Pressure
Type
Annunciator
product series specifications
Supply Voltage: 24 VDC +15%, -10%, <75 mA
Accuracy: ±2% of range (including linearity & hysteresis)
Resolution: 255 steps
Signal Output: 4-20 mA @ 650O (sourcing)
Setpoint Adjust Local: POT with range legend
Setpoint Remote Adjust:
- 10KO POT, (up to 24" away) (UCM-SPA)
- 1-5VDC @ 10KO
- 4-20 mA @ 250O
Control Type: Single loop Proportional or "PI"
Display/Audible: Green Power LED
Sensor Type: Piezoresistive
Adjustments (Loop tuning): Adjustable DA/RA, Proportional range and Integral time
Overpressure: (Burst) 300" WC (74.7 kPa)
Max Operating Pressure: (Proof) 200" WC (49.8 kPa)
Operating Temperature: 32° to 125°F (0° to 52°C)
Operating Humidity: 0 to 90% Non-condensing
Wetted Parts: Silicon
Media Compatibility: Inert dry air
Process Connection: Two 3/16" dia HI/LO Brass nipples for 1/4" Poly tubing
Wiring Terminations: 3-4 depending on configuration, <18 AWG
Mounting: 2 tabs, 0.19" holes or DIN rail option (47)
Enclosure Rating: Noryl plastic, NEMA 1, UL94V-0
Dimensions: 2.0"W x 4.6"H x 4.8"D, (5.1 x 11.7 x 12.2 cm)
Weight: 1.3 lb (0.61 Kg)
Approvals: RoHS
Warranty: 1 year
product series features
- Easy, menu-driven programming
- Large 2 in x 2 in LCD touch screen display
- 0.25% or 0.5% accuracy
- Visual and audible local alarms w/ alarm silence
- Built in alarm horn with local alarm silence
- Optional remote annunciator available
- Selectable analog voltage and milli-amp outputs
- SPDT alarm relay
- Red and green room status LEDs
- Display resolution of 0.001 in
- Door status monitor
- Variable alarm delay
- NIST certification included
- Optional BACnet MSTP
more information & related documents
Series Description
The Model SRPM Room Pressure Monitor provides a system for monitoring differential pressures in critical low pressure applications. For ease of unit, security and alarm setup, the room pressure monitor has a backlit LCD intuitive graphic user interface. In building automation applications, these room pressure monitors significantly reduce installation costs and on going calibration costs of ownership. A red LED, green LED, backlit LCD, local audible alarm and optional remote annunciator alert personnel of the status of the system. A SPDT relay output is also available for additional status indication. Three analog outputs are available in the same unit to interface with BAS system. These room pressure monitors are contained in a tough fire resistant plastic housing designed for surface mounting. The attractive case fits into hospital and pharmaceutical applications. Models are available for 120/240 volt AC or 24 volt AC. The optional SRAN remote annunciator provides a visual and audible warning of room conditions at a remote location.
Kele Description
REMOTE ANNUNCIATOR FOR THE SRPM
Manufacturer
Setra
Related Documents
SRPM Data Sheet
