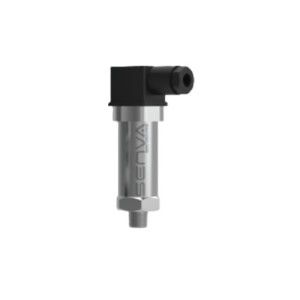

PWT100 | Senva | Pressure
WET DP TRANSMITTER, 0-10, 0-20, 0-50, 0-100 PSID
Brand:Senva
MPN:PWT100
SKU:PWT100
product specifications
Approvals
CE, RoHS
Direction
Bi-Directional
Housing Rating
NEMA 4
Media Compatibility
Liquid, Gas
Range
±100 psi
Type
Adjustable
Wetted Materials
316 Stainless Steel
Connections
1/4 in NPT
Supply Voltage (Nominal)
24 VAC/VDC
product series specifications
Power Supply: 0-5V, 0-10V, 4-20mA
0-5V Output: 12-30VDC//24VAC, 20mA max.
0-10V Output: 13-30VDC/24VAC required for 10V FS output
4-20mA Output: 15-30VDC (0 Ohm)/16-30VDC (250 Ohm)/
18-30VDC (500 Ohm), 20mA max.
Switch Selectable Outputs: 2-wire 4-20mA, 3-wire 0-5V/10V
Transmitter Operating Temperature: -22 to 158°F (-30 to 70°C)
Media Compatibility: Water, other 316 SS compatible media (316L diaphragm) 32 to 250°F (0-125°C)
Zero Adjustment: Pushbutton, terminal block switch input - Press button for 5 seconds to re-zero. Hold for 10 seconds to restore factory settings.
Sensor Type: Micro-machined silicon strain gauge
product series features
- Drastically reduce plumbing needs and save installation time
- Order with pre-fabricated wire to save additional time
- Single device for 1-500 PSID makes ordering easy
- LCD and dip switches make configuration fast and simple
- Display kPa or PSID units
- Remote sensors come standard with DIN43650 connection for easy plug-and-play, no wire twisting
- MEMS sensor technology
- Integrated surge snubber protects sensor from water hammer for reliable long term performance
- Manual and remote zero for maintained accuracy
- Port swap corrects plumbing errors
- Fast/slow switch for desired response time
- Uni/bi directional
- Test mode - forces full scale output
- Conduit and wire connection compatible
more information & related documents
Series Description
The PW30 Series uses remote sensors to eliminate the need for costly bypass assemblies, enabling fast, cost effective installation. The remote sensors mount directly to pipe to eliminate bleeding and additional plumbing. Sensors come with both conduit and wire connection options. Optional factory pre-wired harnesses also available in wire and armored cable versions. Standard LCD screen and dip switches make configuration a breeze. Measure 16 differential pressure ranges from 1-500 PSID with a single device without sacrificing accuracy. Selectable output 0-5V, 0-10V, or 2 Wire 4-20mA.
Kele Description
WET DP TRANSMITTER, 0-10, 0-20, 0-50, 0-100 PSID
Manufacturer
Senva
PW30 Series Datasheet
