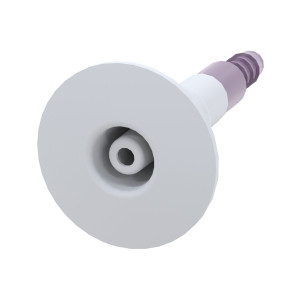

ZPS-ACC20 | BAPI | Pressure Components

Current Output: 7 to 4 0VDC @ 20 mA

Volts Output: 18 to 32 VAC @ 0.12VA, 13 to 40 VDC @ 4.9 mA

Accuracy: ±0.25% of range @72°F (NIST included)

Signal Output: 0-5/10V @ 1K?, 4-20mA @ l850?

Sensor Type: Capacitive

Adjustments: Range select from DIP switches

Normal Measurement Range: 0 to 5"WC, Uni- or Bi- Directional

Display: LCD, 4 digits, 0.37" high (readout may be neutralized)

Overpressure: (Burst) ±41.52"WC (10.34 kPa)

Max Operating Pressure: (Proof) ±27.67"WC, (±6.89 kPa)

Operating Temperature: -4 to 140°F (-20 to 60°C)

Operating Humidity: 0 to 95% Non-condensing

Wetted Parts: Silicone

Media Compatibility: Inert dry air

Process Connection: 3/16" OD brass, for 1/4" OD tubing

Wiring: 3 plug-in terminals 2-(4-20mA), 3-(Volts)

Mounting: 2 or 4, #10 screws (vertical position)

Enclosure Rating: UV-Polycarbonate UL94-V0, NEMA 4, (IP66)

Dimensions: 4.1"W x 5.49"H x 2.5"D, (10.4 x 13.9 x 6.4 cm)

Weight: 1.0 lb (0.45 Kg)

Approvals: CE, RoHS

Warranty: 3 years
