PX3ULX05 | Veris | Pressure Components

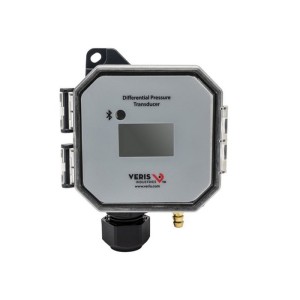

Veris Multi-Range Differential Pressure Transmitter, Universal, LCD Display, No NIST, Pressure: 0 to 10 in. WC / 0 to 2500 Pa, Velocity: 0 to 7000 ft/min / 0 to 35 m/s
Brand:Veris
MPN:PX3ULX05
SKU:PX3ULX05
List Price:
$354.00
Today's Price:
$184.08
Log in for customized pricingproduct specifications
Enclosure Rating
NEMA 4
Accuracy
1%
Approvals
CE
Direction
Uni-Directional, Bi-Directional
Measurement
Inches of Water Column
Media Compatibility
Liquid, Gas
Mount
Duct, Panel
Output
4 - 20 mA
Range
±10 in WC
Type
Multi
Display
LCD
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage: Three-wire Volt mode: 24 VAC or 12-30 VDC, Two-wire mA mode: 12-30 Vdc
Accuracy: Pressure ±1% FS (combined linearity and hysteresis), Velocity ±90 ft/min (±0.45 m/s) plus 5% of measured value
Signal Output: Field-selectable: 2-wire, loop-powered 4-20 mA (DC only, clipped and capped), 24 Vac/dc or 3-wire 0-5V/0-10V
Adjustment: Unidirectional or bidirectional, DIP switch selectable
Normal Measurement Range: 4 Field-Selectable Sub-Ranges
Low Range: 0-1 psi (0-3,000 ft/min) WC
HI Range: 1-10 psi (3,000-6,000 ft/min) WC
Universal Mode (PX3U): 0-10 psi (0-7000 ft/min)
Overpressure: (Burst) 5 psid (34.5 kPa)
Max Operating Pressure: (Proof) 3 psid (20.6 kPa)
Display: Pressure mode: Signed 3-1/2 digit LCD, indicates pressure, overrange indicator. Velocity mode: Signed 4-1/2 digit LCD, indicates velocity, overrange indicator
Operating Temperature: 32 to 140°F (0 to 60°C)
Operating Humidity: 100% RH non-condensing
Media Compatibility: Inert: dry air / inert gas
Process Connection: Brass barb; 0.24" (6.1 mm) o.d.
Wiring Terminals: 2-(4-20 mA), 3-(0-5V/0-10V)
Enclosure Rating: IP65, NEMA 4
Dimensions: 3.5"W x 4.4"H x 1.6"D (88 x 112 x 42 cm)
Weight: 0.6 lb (0.28 Kg)
Approvals: CE
Warranty: 5 year
more information & related documents
Series Description
The Veris PX3 Series differential pressure / air velocity transducers can measure either air pressure or velocity with the flip of a switch. The PX3 is available in three installation configurations: duct, panel or universal. Duct and panel models have two pressure and velocity options: 0-1 in WC / 0-3,000 ft/min or 1-10 WC / 3,000-6,000 ft/min with four field-selectable sub-ranges. The universal model comes in one pressure/velocity range: 0-10 in WC / 0-7,000 ft/min with seven field-selectable sub-ranges for pressure and eight for velocity. All variants are available with and without display. The PX3 has an IP65/NEMA 4 environmental rating and a 5-year limited warranty.
Kele Description
AIR DIFF PRESS XMTR, MULTI,+/-1%, 0-/+/-10" WC, 0-
Manufacturer
Veris
Related Documents
PX3 Datasheet
