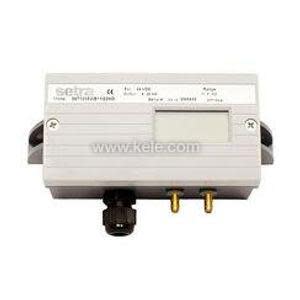

26710R5WB11A1FD | Setra | Pressure Components
Very Low Differential Pressure Transmitter, ±0.5”W.C, 4-20 mA, 1/2 Conduit Opening, ±0.25% FS with Calibration Certificate, LCD Display
Brand:Setra
MPN:26710R5WB11A1FD
SKU:26710R5WB11A1FD
List Price:
$1,531.00
Today's Price:
$796.12
Log in for customized pricingproduct specifications
Media Compatibility
Liquid/Gas
Output
4 - 20 mA
Range
±1 in WC
Type
Fixed
Supply Voltage (Nominal)
24 VAC
product series specifications
Performance data (Standard):
Accuracy RSS1 (at constant temp): ±1.0% FS
Non-linearity, BFSL: ±0.98% FS
Hysteresis: ±0.10% FS
Non-repeatability: ±0.05% FS
Physical description:
Case: IP65/NEMA 4 Plastic Glass-Filled Polycarbonate UL94V-O Case
Electrical connection: Screw Terminal Strip Inside of Case
Electrical Terminations: PG-9/PG13.5 Strain Relief, 1/2" Conduit Opening, or 9 Pin D-Sub Connector
Zero and Span Adjustments: Accessible Inside of Case
Weight (approx.): 9.0 Ounces (255 grams), 9.5 Ounces (Duct Probe Assembly)
Operating Temperature °F (°C): 0 to +150 (-18 to +65)
Storage Temperature °F (°C): -65 to +180 (-54 to +82)
Electrical data (current):
Circuit: 2-Wire, Protected from Miswiring
Output: 4 to 20 mA4
Bidirectional Output at Zero: 12 mA
Min. Loop Supply Voltage (VDC): 9 + 0.02 x (Resistance of Receiver plus line)
Max. Loop Supply Voltage (VDC): 30 + 0.004 x (Resistance of Receiver plus line)
Electrical data (Voltage):
Circuit: 3-Wire (Exc, Gnd, Sig), Protected from Miswiring
Excitation (for 0-5 VDC Output): 9 to 30 VAC /12 to 40 VDC
Excitation (for 0-10 VDC Output): 11 to 30 VAC /13 to 40 VDC
Output: 0 to 5 VDC5 / 0 to 10 VDC5
product series features
- Optional 3.5 Digit LCD Display w/ 0.5% FS Accuracy
- NEMA 4 Rated Housing
- Optional Static Pressure Probe
- PG-9, PG-13 or Conduit Electrical Termination
- 24 VAC or 24 VDC Excitation
- CE & RoHS Compliant
- Suitable for Harsh Environments
- Optional LCD Display
- ±0.25%, 0.4%, 0.5%, 1% FS Accuracy
more information & related documents
Series Description
Model 267 is one of the most highly configurable multirange low differential pressure transducer. It delivers accuracies of ±0.25%, 0.5% and ±1% FS and pressure ranges from 0.1” W.C. up to 100” W.C. The 267 is housed in a robust, NEMA 4 rated enclosure and has an optional static pressure probe reducing installation and material costs. The 267 is offered with an optional LCD display and a standard accuracy of ±0.5% making it ideal for high accuracy Pharmaceutical applications.
Kele Description
DP TRANS, +/- 0-0.50IN WC BI 0.25% CAL CERT W DISP
Manufacturer
Setra
Related Documents
Setra 267 Data Sheet
