2651005WDACT1C | Setra | Pressure Components

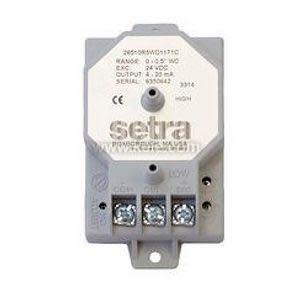

Setra Model 265, 0-5” WC, 24 VAC / 0-10 VDC, Terminal Strip, ±1%

Brand:Setra

MPN:2651005WDACT1C

SKU:2651-005WDACT1C

List Price:

$511.83

Today's Price:

$266.15

catalog page

14 in stock

product specifications

Accuracy

Direction

Uni-Directional

Measurement

Inches of Water Column

Media Compatibility

Liquid/Gas

Mount

Wall

Output

0 - 10 VDC

Range

±5 in WC

Type

Fixed

Supply Voltage (Nominal)

24 VDC

product series specifications

Supply Voltage: 9 to 30VDC @ 20 mA

Current Output: 0-5(10)v output 9(12) to 30VAC @ 0.6 VA; 0-5(10)v output 9(12) to 30V @ 25 mA

Accuracy: ±1% Full scale, Opt. .4% and .25%

Signal Output: 0-5V @ 5KO, 4-20mA @ 750O (loop powered)

Sensor Type: Capacitive

Adjustments: (Z/S) Zero & Span trim POTs

Normal Measurement Range: (0 to 100°C) or ±(0.1 to 50°C)

Overpressure: (Burst) ±10 psid (68.95 kPa)

Max Operating Pressure: (Proof) -50°C to +100°C

Operating Temperature: 0 to 150°C (-18 to 65°C)

Operating Humidity: 10 to 95% Non-condensing

Wetted Parts: Stainless steel

Media Compatibility: Inert dry air

Process Connection: 3/16'' OD plastic, for 1/4'' OD tubing

Wiring Exposed terminals: 2-(4-20mA), 3-(Volts)

Mounting: 2, #10 screws

Enclosure Rating: NEMA1 equivalent, plastic UL94-V-0

Dimensions: 3.16''W x 1.89''H x 1.64''D, (8.0 x 4.8 x 4.2 cm)

Weight: 0.19 lb (0.09 Kg)

Approvals: CE

Warranty: 1 year

product series features

1% accuracy improves variable air volume
Optional accuracies 0.4% or 0.25% FS
24 VDC or 24 VAC excitation
Signal level 0-5 VDC, 0-10 VDC or 2-Wire 4-20 mA
UL94-V-), rated for Plenums
Fully protected against reverse wiring

more information & related documents

Series Description

The Setra Model 265 differential pressure transducer provides superior positive and negative pressure sensing required for high-efficiency air-control systems. The Model 265 is a ±1.0% full scale accuracy unit (±0.4%, ±0.25% FS optional) with an available snap-on conduit enclosure molded from high-impact Lexan®.

Kele Description

DIFF PRESSURE TRANS 0 TO 5.0 IN WC 24VAC 0-10VDC

Manufacturer

Setra
