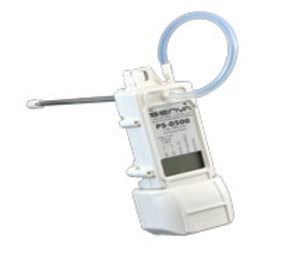

P5-0500-1LP | Senva | Pressure
AIR DIFF PRESS XMTR, +/-1.00%, 0-5.00" WC, FLD SEL OUT, LCD, DUCT
Brand:Senva
MPN:P5-0500-1LP
SKU:P5-0500-1LP
product specifications
Direction
Uni-Directional, Bi-Directional
Media Compatibility
Liquid, Gas
Range
±5 in WC
Type
Transmitter
Display
LCD
Supply Voltage (Nominal)
24 VDC
product series specifications
Power Supply: 12-30 VDC/24 VAC (1), 30mA max
Output type: Selectable outputs: 4-20mA loop powered, 4-20mA 3-wire, 0-5VDC, 0-10VDC
Output scaling:
P5-0500: 0-5V (Selectable 0.1, 0.25, 2.5, 5.0 WC)
P5-1000: 0-10V (Selectable 1.0, 2.5 ,5.0, 10 WC)
P5-2500: 0-25V (Selectable 5.0, 10, 15, 25 WC)
P5-1250Pa: 0-1250 Pa (Selectable 25, 50, 625, 1250 Pa)
P5-2500Pa: 0-2500 Pa (Selectable 250,625, 1250, 2500 Pa)
P5-6250Pa: 0-6250 Pa (Selectable 1250, 2500, 3750, 6250 Pa)
Operating temperature:
Operating range: -4 to 185? (-20 to 85?)
Compensated range: 32 to 122? (0 to 50?)
Media compatibility: Dry, oil-free air, N2
Sensor type: MEMS silicon piezoresistive; precision calibrated
Sensor performance:±0.25% BFSL (Best fit straight line)
Accuracy: ±1.0% of selected range (combined linearity and hysterisis)
Zero Drift (1 year): 1% max
Auto-zero input: Push-button and contact closure
Warranty: 7 year limited warranty
product series features
- Reduce inventory and ordering errors with universal unit
- Time and money-saving installation for contractors and OEMs
- LED visual status indications of operation®
more information & related documents
Series Description
The Senva P5 Series universal dry media pressure transmitter accurately measures multiple ranges optimized for building (zone) pressure, filter measurement, and static duct applications. Selectable outputs and uni/bi-directional readings reduce inventory. Innovative static probe integrates with unit or can be mounted remotely for static pressure. Optional LCD for panel mount readings and set up.
Kele Description
AIR DIFF PRESS XMTR, +/-1.00%, 0-5.00" WC, FLD SEL OUT, LCD, DUCT
Manufacturer
Senva
P5 Universal Pressure Installation Manual
