MSX-W12-IN-LCD | Dwyer Instruments | Pressure Components

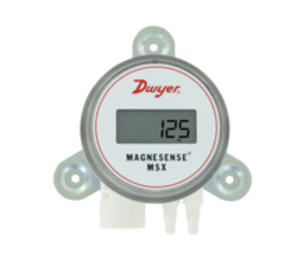

DIFF PRESS XMTR, WALL MOUNT, UNI CURRENT/VOLT OUT, UNI-DIRECTIONAL, RANGE 1, 2, 3, 5, LCD DISPLAY
Brand:Dwyer Instruments
MPN:MSX-W12-IN-LCD
SKU:MSX-W12-IN-LCD
product specifications
Enclosure Rating
NEMA 4X
Approvals
CE
Direction
Uni-Directional
Media Compatibility
Liquid/Gas
Range
±5 in WC
Type
Multi
Display
LCD
Supply Voltage (Nominal)
24 VDC
product series specifications
Service: Air and non-combustible, compatible gases
Accuracy: ±1% FSO
Stability: ±1% FSO/year
Temperature Limits: -4 to 158°F (-20 to 70°C)
Pressure Limits: Ranges 0 and 1: 3.6 psi max operation, 6 psi burst; Ranges 2 and 3: 6 psi max operation, 6 psi burst
Power Requirement: 10-36 VDC (2-wire), 17-36 VDC or isolated 21.6-33 VAC (3-wire)
Response Time: 4-20 mA (2-wire); 0-10 V or 0-5 V selectable (3-wire)
Zero and Span Adjustments: Digital push-button
Loop Resistance: Current output: 0-1250 O max; Voltage output: min. load resistance 1 k O
Current Consumption: 21 mA max continuous
Electrical Connections: 4-wire removable European style terminal block for 16 to 26 AWG
Electrical Entry: 1/2" NPS thread
Display (optional): 4 digit LCD
Process Connections: 1/8", 3/16", 1/4", 5 mm, and 6 mm ID flexible tubing
Enclosure Rating: NEMA 4X (IP66), UL 2043 (Plenum), UL94 V-0
Mounting Orientation: Pressure sensor measurement unaffected by orientation
Weight: 8.0 oz (230 g)
Approvals: CE
product series features
- Rotatable 180 degree display for ease of reading
- Optional toolless terminal block allows for quick and easy wiring
- UL94 V-0 and plenum rating that add safety to a variety of applications
more information & related documents
Series Description
The Series MSX Magnesense® Differential Pressure Transmitter combines the stability and versatility of the original Series MS2 Magnesense® II transmitter for use in building control applications. The MSX simplifies the ordering process to deliver the desired configuration, which reduces product setup time. Pressure ranges are available in Pa, mm w.c., and in w.c. All pressure ranges can be configured in unidirectional or bidirectional modes, providing a total of 32 ranges. The MSX transmitter can provide a linear pressure output or a linear velocity output with the square root extraction from the transmitter. Additional parameters have been included to expand the square root capability for calculating flow. Dual voltage and milliamp output signals can be used to provide both control and equipment output signal verification.
Kele Description
DIFF PRESS XMTR, WALL MOUNT, UNI CURRENT/VOLT OUT, UNI-DIRECTIONAL, RANGE 1, 2, 3, 5, LCD DISPLAY
Manufacturer
Dwyer Instruments
MSX series BACnetModbus Installation
