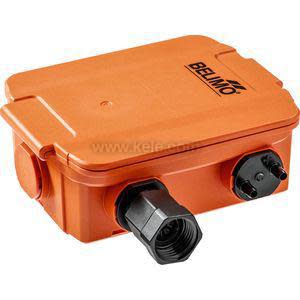

22ADP-584 | Belimo | Pressure Components
Differential Pressure Sensor Air, 0...10 inch WC 0...2500 Pa, 0...5 V, 0...10 V, 4...20 mA
Brand:Belimo
MPN:22ADP-584
SKU:22ADP-584
List Price:
$378.00
Today's Price:
$196.56
Log in for customized pricingproduct specifications
Enclosure Rating
Nema 4X
Accuracy
1%
Approvals
CE, UL
Direction
Uni-Directional, Bi-Directional
Measurement
Inches of Water Column
Media Compatibility
Liquid, Gas
Mount
Wall
Output
4 - 20 mA
Range
±10 in WC
Type
Multi
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage: 15...24 VDC, ±10%, 1.4 W; 24 VAC, ±10%, 2 VA
22ADP-584/L: 15...24 VDC, ±10%, 1.1 W; 24 VAC, ±10%, 1.7 VA
22ADP-586/L: 15...24 VDC, ±10%, 1.1 W; 24 VAC, ±10%, 1.7 VA
22ADP-58Qx: 15...24 VDC, ±10%, 1.1 W; 24 VAC, ±10%, 1.7 VA
Sensor Technology: Piezo measuring element
Accuracy for Pressure: Measuring range ±2 inch WC (500 Pa): ±0.02 inch WC (±5 Pa); Measuring range >2 inch WC (500 Pa): ±0.04 inch WC (±10 Pa)
Operating Temperature Range: 15°F to 120°F (-10°C to 50°C)
Signal Output (Active Pressure): DC 0-5V, DC 0-10V
22ADP-584/L: DC 0-5V, DC 0-10V, 4-20 mA
22ADP-586/L: DC 0-5V, DC 0-10V, 4-20 mA
22ADP-58Qx: DC 0-5V, DC 0-10V, 4-20 mA
Signal Output (Active Volumetric Flow): DC 0-5V, DC 0-10V
Signal Output (Modbus): 22ADP-55Qx
Pressure Range:
22ADP-55Qx: 0 to 250 Pa
22ADP-58Qx: 0 to 250 Pa
22ADP-554/L: 0 to 2500 Pa
22ADP-556/L: 0 to 7000 Pa
22ADP-584/L: 0 to 2500 Pa
22ADP-586/L: 0 to 7000 Pa
Operating Humidity: Max. 95% RH non-condensing
Wiring: Removable spring loaded terminal block max. 11 GA (2.5 mm²)
Optional Display: LCD, 1.14" x 1.38" (29 x 35 mm) with backlight; measured values: Pa, inch WC (configurable); measured values volumetric flow: m³/h, cfm (configurable)
Enclosed Material: Cover: lexan, Belimo orange NCS S0580-Y6OR; Base: lexan, Belimo orange NCS S0580-Y6OR; Seal: 0467 NBR70, black
Enclosure Rating: IP65, NEMA 4X
Approvals: UL 2043, UL 50
Warranty: 5 years
product series features
- 8 selectable ranges and 2 selectable outputs
- Optional model with LCD read-out
- NEMA 4X / IP65 rated enclosure
- Modbus functionality
more information & related documents
Series Description
Belimo's 22ADP Differential Pressure Sensor (Air) Series comes with 8 selectable ranges and 0 to 5/10 V, 4 to 20 mA outputs and Modbus functionality. NEMA 4X / IP65 rated enclosure. For monitoring the differential pressure of air and other non-flammable and nonaggressive gases. Monitoring air filters, fans, industrial cooling air cycles, control of air and fire dampers. When you need the right product, right now, count on Kele.
Kele Description
AIR DIFF PRESS XMTR, MULTI, +/-1.00%, 0-10.00" WC,
Manufacturer
Belimo
Belimo 22ADP-554-Datasheet
