26910R5WD11DNEN | Setra | Pressure Components

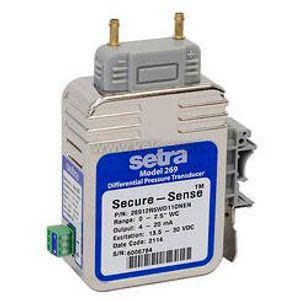

Setra Model 269 Secure-Sense™ Low Differential Pressure Transducer, 0-0.5 WC, 24 VDC / 4-20 mA, Din Rail, No Display, ± 0.50%, No Turndown

Brand:Setra

MPN:26910R5WD11DNEN

SKU:2691-0R5WD

List Price:

$3,115.84

Today's Price:

$1,620.24

product datasheet

installation instructions

catalog page

Lead time of > 15 days. Chat with Kele experts now

product specifications

Accuracy

0.5%

Direction

Uni-Directional

Measurement

Inches of Water Column

Media Compatibility

Liquid/Gas

Mount

DIN rail

Output

4 - 20 mA

Range

±1 in WC

Type

Fixed

Supply Voltage (Nominal)

24 VDC

product series specifications

Supply Voltage: 13.5 to 30 VDC @ 20 mA

Accuracy: ± 0.5% Full scale

Signal Output: 4-20 mA @ 525O (loop powered)

Sensor Type: Capacitive

Adjustments: (Z/S) Push Button Zero and Span (security key req.)

Normal Measurement Range: 0 to 10"WC (0 to 2.5kPa), Uni- or Bi- Directional

Overpressure: (Burst) ±10 psid (68.95 kPa)

Max Operating Pressure: =2"WC, (±0.498 kPa)

Operating Temperature: 20 to 140°F (-6.6 to 60°C)

Operating Humidity: 10 to 95% Non-condensing

Wetted Parts: Stainless steel

Media Compatibility: Inert: dry air

Process Connection: 3/16"OD brass, for ¼" OD tubing

Wiring: Terminals

Mounting: DIN rail (vertical position)

Enclosure: Rating ABS Plastic, NEMA 1

Dimensions: 5.1"W x 3.9"H x 1.29"D, (13 x 10 x 3.2 cm)

Weight: 0.56 lb (0.3 Kg)

Approvals: CE

Warranty: 1 year

product series features

2 psig overpressure
0.5% full scale accuracy
Reverse wiring protection
4-20 mA output
Setra quality standards are based on ANSI-Z540-1. The calibration of this product is NIST traceable.
Bidirectional ranges available

more information & related documents

Series Description

The Setra 269 Series differential pressure transmitters are designed for high performance applications such as clean rooms, isolation rooms, and other critical environments. The transmitters offer full scale accuracy of ±0.5% with excellent long term stability. Installation and calibration is easy with the removable process head, detachable terminal block and Din Rail mounting.

Kele Description

AIR DIFF PRESS XMTR, FIXED, +/-0.50%, 0-0.5" WC, 4-20 MA, NO LCD, DIN RAIL

Manufacturer

Setra
