2641R25WB11A1C | Setra | Pressure Components

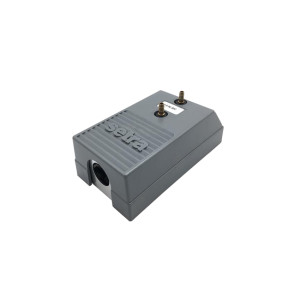

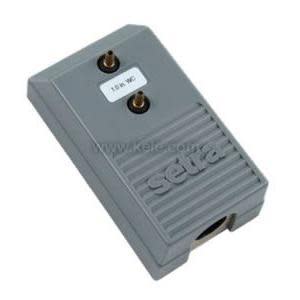

Setra Model 264, ± 0.25 WC, 4-20 mA, 1/2 Conduit enclosure, ±1%
Brand:Setra
MPN:2641R25WB11A1C
SKU:2641R25WB11A1C
product specifications
Accuracy
1%
Direction
Bi-Directional
Measurement
Inches of Water Column
Media Compatibility
Liquid/Gas
Output
4 - 20 mA
Range
±1 in WC
Type
Fixed
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage: 9 to 30V DC
Accuracy: ± 1% Full scale
Signal Output: 0-5V @ 5KO, 4-20mA @ 750 O (loop powered)
Sensor Type: Capacitive
Adjustments: (Z/S) Zero & Span trim POTs
Normal Measurement Range: (0 to 100?WC) or ±(0.1 to 25?WC)
Display:
Overpressure: (Burst) ±10 psid (68.95 kPa)
Max Operating Pressure: (Proof) -25?WC to +100?WC
Operating Temperature: 0 to 175°F (-18 to 79°C)
Operating Humidity: 10 to 95% Non-condensing
Wetted Parts: Stainless steel
Media Compatibility Inert: dry air
Process Connection: ¼? OD brass, for ¼? OD tubing
Wiring Exposed terminals: 2-(4-20mA), 3-(Volts)
Mounting: 2 or 4, #10 screws
Enclosure Rating: NEMA1 equivalent, plastic UL94-V-0
Dimensions: 5.06?W x 2.75?H x 2.38?D, (12.9 x 7 x 6 cm)
Weight: 0.55 lb (0.25 Kg)
Approvals: CE
Warranty: 3 years
product series features
- 4-20 mA output signal
- Voltage output signal optional
- 10 psig (68.70 kPa) overpressure
- Three-year unconditional warranty
- 1% accuracy standard, 0.4% and 0.25% NIST certification optional
- Reverse wiring protected
- Stainless steel diaphragm
- Ideal for air and non-conducting gases
more information & related documents
Series Description
The Setra Model 264 Differential Pressure Transmitter is a low-air pressure transmitter able to sense differential pressure in both negative and positive ranges. The Model 264 incorporates a tensioned stainless steel diaphragm to form a variable capacitor that will produce variation in the output signal. The Model 264's durable design will tolerate an overpressure of 10 psig (68.95 kPa) and has an unconditional three-year warranty.. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.
Kele Description
AIR DIFF PRESS XMTR, FIXED, +/-1.00%, +/-0.25" WC, 4-20 MA, NO LCD, CONDUIT
Manufacturer
Setra
Related Documents
Model 264 Datasheet
