CX8MB242P1IWL | Ashcroft, Inc | Pressure Components

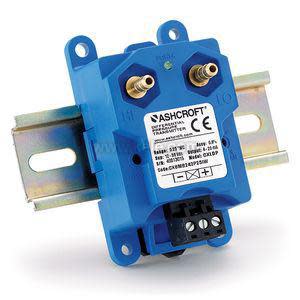

CXLdp Series Air Differential Pressure Transmitter, ±0.80% of span, ± 0.03% of span T.C. /°F, 1/4 Barbed Male, 4-20 mA, Supply Voltage 12-36 Vdc, ±0.10 WC

Brand:Ashcroft, Inc

MPN:CX8MB242P1IWL

SKU:CX8MB242P1IWL

List Price:

$454.00

Today's Price:

$236.08

product datasheet

catalog page

8 in stock

product specifications

Accuracy

0.80%

Direction

Uni-Directional, Bi-Directional

Media Compatibility

Liquid, Gas

Mount

DIN rail

Output

4 - 20 mA

Range

±1 in WC

Type

Transmitter

Supply Voltage (Nominal)

24 VDC

product series specifications

Supply Voltage: 12-36 VDC

Supply Current: <6 mA for voltage output

Signal Output: 4-20 mA @ 545?, 1-5 VDC, 0-10V

4-20 mA @ 545?, 1-5 VDC, 0-10V, CXL: 0-10 V

Maximum Output:

Impedance: RXLdp: 545O @ 24 VDC (up to 1045O @ 36 VDC),

CXLdp: 545O @ 24 VDC (up to 1091O @ 36 VDC)

Accuracy: 1%

Stability: ±0.5% FS/yr

Operating Temperature: 0° to 160°F (-18° to 71°C)

Compensated Temperature:

Range: RXLdp: 40° to 125°F (4° to 52°C), CXLdp: 35° to 130°F (2° to 54°C)

Proof Pressure: 10 psid (69 kPa)

Burst Pressure: 25 psid

Response Time: 250 ms

Media Compatibility: Air and non-corrosive gases

Dimensions:

RXLdp: 2.8"W x 3.8"H x 1.6"D (7.0 x 9.7 x 4.1 cm)

CXLdp: 1.9"W x 3.3"H x 1.3"D (4.8 x 8.5 x 3.3 cm)

Weight: 0.28 lb (0.13 Kg)

Approvals: CE

Warranty: 1 year

product series features

Reliable, stable capacitive sensor
Reverse polarity protected
High proof pressure
DIN rail mount CXLdp models
Power LED on CXLdp models

more information & related documents

Series Description

The CXLDP Series differential pressure transmitters are designed for use with air and other non-corrosive gases. The CXLDP Series feature an accuracy of 0.4% or 0.08% and can be DIN rail mounted.

Kele Description

AIR DIFF PRESS XMTR, FIXED, +/-0.80%, +/-0.10" WC, 4-20 MA, LED, DIN RAIL, WALL

Manufacturer

Ashcroft, Inc
