KDP2MD-10-XX | Kele | Pressure

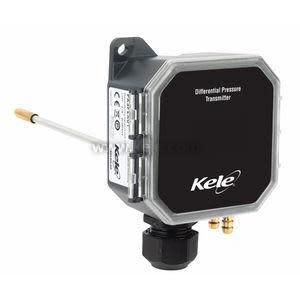

Kele Air Differential Pressure with Air Velocity, ±1% (±90 ft/min), Duct (Includes 7.4 probe), 0-10 WC, 0-3000 Ft.Min., No Display, No NIST Certificate
Brand:Kele
MPN:KDP2MD-10-XX
SKU:KDP2MD-10-XX
product specifications
Enclosure Rating
NEMA 4
Accuracy
1%
Approvals
CE
Direction
Uni-Directional
Measurement
Inches of Water Column
Media Compatibility
Liquid/Gas
Mount
Duct
Range
±1 in WC
Type
Multi
Supply Voltage (Nominal)
24 VAC, 24 VDC
product series specifications
Supply Voltage: 24 VAC or 12-30 VDC
Three-wire Volt Mode: 24 VAC or 12-30 VDC
Two-wire mA Mode: 12-30 VDC
Accuracy: Pressure ±1% FS (combined linearity and hysteresis), Velocity ±90 ft/min (±0.45 m/s) plus 5% of measured value
Signal Output: Field-selectable: 2-wire, 4-20 mA 750? @ 24 VDC max., 24 Vac/dc or 3-wire 0-5V/0-10V @ 5K? min.
Adjustment: Unidirectional or bidirectional, DIP switch selectable
Normal Measurement:
Range: 4 Field-Selectable Sub-Ranges
Low Range: 0-1 psi (0-3,000 ft/min) WC
HI Range: 1-10 psi (3,000-6,000 ft/min) WC
Universal: 0-10 psi (0-7000 ft/min)
Overpressure:
Burst: 5 psid (34.5 kPa)
Proof: 3 psid (20.6 kPa)
Display:
Pressure Mode: 3-1/2 digit LCD, indicates ± pressure, overrange indicator
Velocity Mode: 4-1/2 digit LCD, indicates velocity, overrange indicator
Velocity Formula: STD PITOT 4005 x v?P(WC)
Operating Temperature: 32 to 140°F (0 to 60°C)
Operating Humidity: 100% RH non-condensing
Media Compatibility: Dry air or inert gas
Process Connection:
Brass Barb: 1/4" tubing
Wiring Terminals: 2- (4-20 mA), 3- (0-5V/0-10V)
Enclosure Rating: IP65, NEMA 4
Dimensions: 3.5"W x 4.4"H x 1.6"D (88 x 112 x 42 cm)
Pressure Probe: 7.4” (18.8 cm), 0.3” (0.7 cm)
Weight: 0.6 lb (0.28 Kg)
Approvals: CE
Warranty: 5 years
product series features
- Comes in one pressure/velocity range
- Available with and without display
- 5-year limited warranty
- NEMA 4 (IP65) enclosure
more information & related documents
Series Description
The Kele KDP2M Series differential pressure / air velocity transducers can measure either air pressure or velocity with the flip of a switch. The KDP2M is available in three installation confgurations: duct with static pressure tube, panel or universal. Duct and panel models have two pressure and velocity options: 0-1 in WC / 0-3,000 ft/min or 1-10 in WC / 3,000-6,000 ft/min with four field-selectable sub-ranges. The universal model comes in one pressure/velocity range: 0-10 in WC / 0-7,000 ft/min with seven feld-selectable sub-ranges for pressure and eight for velocity. All variants are available with and without display. The KDP2M has an IP65/NEMA 4 environmental rating and a 5-year limited warranty. Kele is the leading supplier of HVAC and building automation components. When you need the right part, right now, count on Kele!
Kele Description
AIR DIFF PRESS XMTR, MULTI, +/-1.00%, 0-10.00" WC,
Manufacturer
Kele
Related Documents
Kele KDP2M Install Manual Rev 2
