M230-050PD-C | Setra | Pressure Components

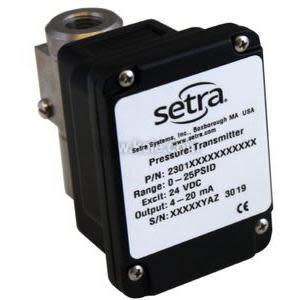

Setra Model 230 Wet-Wet Differential Pressure Transmitter, ±0.25%, 0-50 PSID, 4-20 mA
Brand:Setra
MPN:M230-050PD-C
SKU:M230-050PD-C
List Price:
$1,561.50
Today's Price:
$811.98
Log in for customized pricingproduct specifications
Enclosure Rating
NEMA 4
Feature
NIST 1 pt
Accuracy
0.25%
Approvals
CE, RoHS
Direction
Uni-Directional
Measurement
PSID
Media Compatibility
Liquid, Gas
Output
4 - 20 mA
Range
±50 psi
Type
Adjustable
Wetted Materials
17-4 Stainless Steel
Connections
1/4 in NPT
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage:
Current Output: 9-30 VDC @ 20 mA
Voltage Output: 5V = 9-30 VDC, 10V = 13 to 30 VDC @ 10 mA
Accuracy: ±0.25% Full scale
Signal Output (Volts,Current): 4-20mA @ 1KO
Sensor Type: Capacitance sensor
Adjustments: Zero & Span trim POTs
Overpressure (Burst): 350 psig (2413 kPa) High port / 250 psig (1723 kPa) Low port
Operating Temperature: 0° to 175°F (-18° to 80°C)
Compensated Temp Range: 30° to 150°F (-1° to 65°C)
Operating Humidity: 10 to 95% Non-condensing
Wetted Parts: 17-4 stainless steel w/Viton® & Silicon seals
Media Compatibility: Liquid/Gasses compatible w/17-4 SS
Process Connection: ¼" 18 NPT
Wiring Terminations: Exposed, 3 terminals, 16 to 22 AWG
Mounting: L-Bracket w/2, 0.156” holes for #6 screws
Enclosure Rating: NEMA 4, (IP65)
Dimensions: 7.05"W x 6.25"H x 2.16"D, (17.9 x 15.9 x 5.5 cm)
Weight: 0.94 lb (0.41 Kg)
Approvals: CE
Warranty: 1 year
product series features
- 0.25% accuracy
- NEMA 4 (IP65) protection
- Stainless steel wetted parts
- Elastomer seals
- High proof pressure
- Current or voltage outputs
- Mounting bracket included
more information & related documents
Series Description
The Setra Model M230 Differential Pressure Transmitter is a highly accurate differential pressure transmitter that incorporates a capacitive technology to produce a linear electronic signal proportional to the differential pressure. It will measure differential pressure in unidirectional applications as much as 100 psi and bidirectional applications as much as 50 psi. The stainless steel wetted parts and elastomer seals make this unit ideal for both liquids and gases. The NEMA 4 (IP65) case keeps the internal electronics protected from the environment.
Kele Description
DP TRANSMITTER 0-50PSI 4-20 MA
Manufacturer
Setra
Related Documents
Setra 230 Data Sheet
