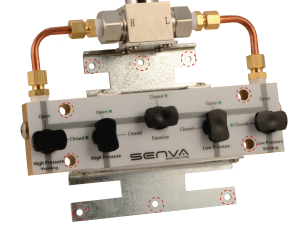

PW31-5V-010A | Senva | Pressure
WET-WET DP TRANS, ±0.25% ACCURACY, 5-VALVE MANIFOLD, 0-10 PSID, 0-5 VDC OUTPUT, NO DISPLAY
Brand:Senva
MPN:PW31-5V-010A
SKU:PW31-5V-010A
product specifications
Media Compatibility
Liquid/Gas
Output
0 - 5 VDC
Range
0 - 10 psid
Type
Manifold
Supply Voltage (Nominal)
24 VDC
product series specifications
Power supply: 15-35vdc, 20mA max.
Outputs: 2-wire 4-20mA, 3-wire 0-10V, 3-wire 0-5V
Operating Temperature: -4 to 175°F (-20-80°C)
Compensated range: 30 to 158°F (0-70°C)
Media Compatibility Transmitter: Transmitter Only 316L SS compatible liquids and gases, Viton O-rings
Media Compatibility Manifold:
Connection: Copper tube, CW614n Brass fittings (2.5-3.5% lead content)
Manifold O-Rings: Neoprene
Manifold Valves: Glass filled Acetal (Polyacetal Resin)
Manifold Material: Anodized Aluminum
Differential Pressure Ranges: 0-5 PSID 0-10 0-25 0-50 0-100 0-150
Sensor Enclosure: Laser welded housing, IP65
Pressure Connection Transmitter: 1/4" NPT Female
Pressure Connections Manifold: 1/4" NPT female
Electrical Connection: DIN43650A
Environmental: IP65 (Installed with water-tight fittings), 1/2” conduit adapter included
Display: Accuracy 0.1%, Output 4-20mA
Agency: Transmitter Only: CE, RoHS, Manifold: CE
product series features
- Temperature compensated element for high accuracy in any"nenvironment
- 3-valve or 5-valve bypass options available to meet"nspecifications
- DIN 43650 connector with screw terminals - no splicing"nnecessary
- Versatile 1/2” FNPT allows simplified conduit connections -"nconnect to any EMT, flex, or liquid-tight conduit
- Easy-access bleed valves for quick commissioning
- Calibration certificate included with every sensing element"nOptional LED display is highly visible and makes commissioning"nand troubleshooting simple (IP65)
more information & related documents
Series Description
Senva’s PW31 Series is designed to streamline installation and provide maximum accuracy. Options for standalone transducer or 3-valve and 5-valve bypass assemblies allow flexibility and save time on installation and commissioning. The single-diaphragm element is temperature compensated to provides superior ±0.25% accuracy. The PW31’s compact, light, and rugged structure combined with IP65 stainless steel construction make it ideal for most installations and capable of withstanding the most rugged environments. Now available with a highly visible, loop-powered LED display. Just plug it in for ease of commissioning and troubleshooting (4-20mA version only).
Kele Description
WET-WET DP TRANS, ±0.25% ACCURACY, 5-VALVE MANIFOLD, 0-10 PSID, 0-5 VDC OUTPUT, NO DISPLAY
Manufacturer
Senva
