PW30W-006

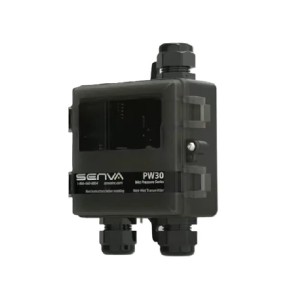

* product series image displayed

PW30W-006 | Senva | Pressure

WET TRANSDUCER, WALL, 6FT CABLES

Brand:Senva

MPN:PW30W-006

SKU:PW30W-006

List Price:

$736.00

Today's Price:

$382.72



(login for better pricing)
1 in stock
SHIPS TODAY!

product specifications

Approvals

CE, RoHS

Direction

Bi-Directional

Housing Rating

NEMA 4

Media Compatibility

Liquid/Gas

Range

±500 psi

Type

Adjustable

Wetted Materials

316 Stainless Steel

Connections

1/4 in NPT

Supply Voltage (Nominal)

24 VAC/VDC

product series specifications

Power Supply: 0-5V, 0-10V, 4-20mA

0-5V Output: 12-30VDC//24VAC, 20mA max.

0-10V Output: 13-30VDC/24VAC required for 10V FS output

4-20mA Output: 15-30VDC (0 Ohm)/16-30VDC (250 Ohm)/
18-30VDC (500 Ohm), 20mA max.

Switch Selectable Outputs: 2-wire 4-20mA, 3-wire 0-5V/10V

Transmitter Operating Temperature: -22 to 158°F (-30 to 70°C)

Media Compatibility: Water, other 316 SS compatible media (316L diaphragm) 32 to 250°F (0-125°C)

Zero Adjustment: Pushbutton, terminal block switch input - Press button for 5 seconds to re-zero. Hold for 10 seconds to restore factory settings.

Sensor Type: Micro-machined silicon strain gauge

product series features

  • Drastically reduce plumbing needs and save installation time
  • Order with pre-fabricated wire to save additional time
  • Single device for 1-500 PSID makes ordering easy
  • LCD and dip switches make configuration fast and simple
  • Display kPa or PSID units
  • Remote sensors come standard with DIN43650 connection for easy plug-and-play, no wire twisting
  • MEMS sensor technology
  • Integrated surge snubber protects sensor from water hammer for reliable long term performance
  • Manual and remote zero for maintained accuracy
  • Port swap corrects plumbing errors
  • Fast/slow switch for desired response time
  • Uni/bi directional
  • Test mode - forces full scale output
  • Conduit and wire connection compatible

more information & related documents

Series Description

The PW30 Series uses remote sensors to eliminate the need for costly bypass assemblies, enabling fast, cost effective installation. The remote sensors mount directly to pipe to eliminate bleeding and additional plumbing. Sensors come with both conduit and wire connection options. Optional factory pre-wired harnesses also available in wire and armored cable versions. Standard LCD screen and dip switches make configuration a breeze. Measure 16 differential pressure ranges from 1-500 PSID with a single device without sacrificing accuracy. Selectable output 0-5V, 0-10V, or 2 Wire 4-20mA.

Kele Description

WET TRANSDUCER, WALL, 6FT CABLES

Manufacturer

Senva
