DPW-692-100-KIT | Kele | Pressure Components

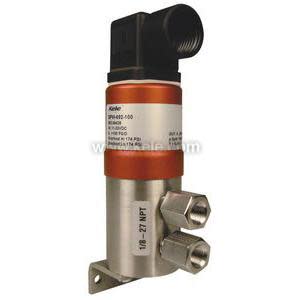

Kele DPW Wet-Wet Differential Pressure Transmitter, ±0.50%, 0-100 psid, Kit (Parts Ready for Assembly)
Brand:Kele
MPN:DPW-692-100-KIT
SKU:DPW-692-100-KIT
List Price:
$937.00
Today's Price:
$487.24
Log in for customized pricingproduct specifications
Enclosure Rating
NEMA 4
Accuracy
0.50%
Approvals
CE, RoHS
Direction
Uni-Directional
Measurement
PSID
Media Compatibility
Liquid, Gas
Output
4 - 20 mA
Range
±100 psi
Type
Fixed
Wetted Materials
303 Stainless Steel w/FPM seals
Connections
1/8 in NPT
Supply Voltage (Nominal)
24 VDC
product series specifications
Supply Voltage: 11 to 33 VDC @ 25 mA
Current Output: 4-20 mA @ 800 O (loop powered)
Accuracy: ±0.5% Full scale (Linearity, Hysteresis & Repeatability)
Sensor Type: Ceramic pressure sensor
Max DP (Port to Port):
0-60 psid = 174 psi (1199 kPa)
0-100 psid = 464 psi (3198 kPa) high port / 174 psi (1199 kPa) low port
Overpressure (Burst):
0-60 psid = 543 psi (3743 kPa)
0-100 psid = 1088 psi (7501 kPa)
Max Operating Pressure (Proof):
0-60 psid = 362 psi (2455 kPa)
0-100 psid = 725 psi (4999 kPa)
Operating Temperature: 5° to 176°F (-15° to 80°C)
Operating Humidity: 10 to 95% Non-condensing
Wetted Parts: 303 stainless steel w/FPM (Viton®) seals
Media Compatibility: Liquids/Gases compatible w/303 SS
Process Connection: 1/8" FNPT
Wiring Terminations: DIN 43650-A connector w/ 2 terminals
Mounting: L-Bracket w/2, 0.2" holes for #6 or #8 screws
Enclosure Rating: NEMA 4, (IP66)
Dimensions: 1.73"W x 5.9"H x 2.53"D (4.4 x 15 x 6.4 cm)
Weight: 0.94 lb (0.4 Kg)
Approvals: CE, RoHS
Warranty: 1 year
product series features
- Competitively priced
- Very high quality
- Short-circuit proof
- Protection from reverse polarity
- Compact heavy duty housing
- True differential pressure sensing
- 1/2 in NPT conduit connector
- NEMA 4 (IP65) environmental rating
- Mounting bracket included
more information & related documents
Series Description
The DPW-692 Series Differential Pressure Transmitter is ideal for monitoring pumps and piping differential pressures in HVAC systems and process systems including tank level monitoring. The differential pressure transmitters incorporate proven, unique ceramic sensor technology. The stainless steel housing is compatible with a wide variety of liquid or gas media. The convenient DIN 43650-A wiring connector makes installation easy and provides NEMA 4 (IP65) environmental protection.
Kele Description
WET-WET DIFF PRESS XMTR, FIXED, +/-0.50%, 0-100PSID, 4-20 MA, NO REM SNSR
Manufacturer
Kele
Related Documents
DPW-692 Data Sheet
