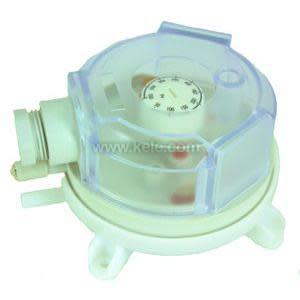

KDPS-03F | Kele | Pressure Components

Relay Type: SPDT

Relay Rating: 1.5A resistive

Setpoint:

KDPS-02: 0.08" to 0.80" WC (20 to 200 Pa)

KDPS-03: 0.12" to 1.20" WC (30 to 300 Pa)

KDPS-04: 0.16" to 1.60" WC (40 to 400 Pa)

KDPS-05: 05 0.20" to 2.00" WC (50 to 500 Pa)

KDPS-10: 0.80" to 4.0" WC (200 to 1000 Pa)

KDPS-25: 2.0" to 10.0" WC (500 to 2500 Pa)

Differential Fixed: 0.04" to 0.06" WC (See ordering)

KDPS-02/03: 0.04" WC (10 Pa)

KDPS-04/05: 0.08" WC (20 Pa)

KDPS-10: 0.4" WC (100 Pa)

KDPS-25: 0.6" WC (150 Pa)

Reset Automatic: reset by differential

Visual Indication: Internal SP dial

Sensor Type: Diaphragm

Overpressure: (Burst) 40.4" WC (10kPa)

Max Operating Pressure: (Proof) 20" WC (5kPa)

Operating Temperature: -40° to 185°F (-40 to 85°C)

Operating Humidity: 10 to 90% Non-condensing

Wetted Parts: Rubber for clean air only

Media Compatibility Inert: dry air

Process Connection: 0.23 OD nipple for 0.25 OD/0.17 ID tubing

Wiring Terminations: 3 Terminals SPDT

Mounting: 4 tabs with Holes 0.14" (0.36cm)

Enclosure Rating: NEMA 3R, (IP54)

Dimensions: 3.95"W x 3.49"H x 1.55"D, (10 x 8.9 x 3.9 cm)

Weight: 0.38 lb (0.17 Kg)

Approvals: CE, UL File #MH46253, RoHs

Warranty: 1 year
