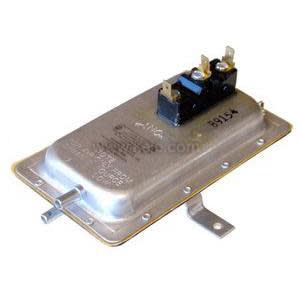

Metal pressure or humidity switch with rectangular lid, two screw terminals on top and small tube port

5460702 | Columbus Electric | Pressure Components

Differential Pressure Switch, Fixed, 0.05” WC, Automatic Reset, Tube Connections on Both Sides

Brand:Columbus Electric

MPN:5460702

SKU:RH1505D0

List Price:

$106.00

Today's Price:

$55.12

product datasheet

Lead time of 3 days. Chat with Kele experts now

product specifications

Direction

Uni-Directional

Measurement

Inches of Water Column

Media Compatibility

Air

Range

±1 in WC

Type

Fixed

Contact Type

SPDT

Connection

1/4 in OD Tubing

Housing Material

Metallic

Contact Rating

15 A

Override

Automatic

Power Required

Switch

Enclosure Rating

NEMA 1

Approvals

UL,CSA

Supply Voltage (Nominal)

277 VAC

product series specifications

Supply Voltage: 120-277 VAC

Contact Rating: 15 Amps, Resistive Max.; 1/4 HP @ 125 VAC; 1/2 HP @ 250 VAC

Contact Type: SPDT

Measurement Range: 0.05" WC

Connector: Tube both sides

Approvals: CSA, UL File MH10196

product series features

Senses Pressure or vacuum
Adjustable or fixed pressure
Automatic or manual reset
Tube, barbed or compression fittings

more information & related documents

Series Description

The Columbus Electric RH Series Air Flow / Differential Pressure Switch senses pressure or vacuum. The switch can be ordered with adjustable or fixed pressure and barbed or compression fittings.

Kele Description

DIFF PRESS SW, FIXED, 0.05” WC

Manufacturer

Columbus Electric
