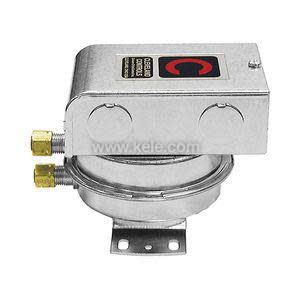

RFS-4001-031 | Cleveland Controls | Pressure Components

Supply Voltage: Not required

Contact Type: SPDT

Contact Rating: 300 VA pilot duty @ 115-277 VAC, 5A non-inductive to 277 VAC

Setpoint (SP): (025, 031) Adjustable from 0.15 to 5.0" WC with screw

Dial Pressure Gauge: (092) Adjustable from 0.15 to 2.0" WC with screw

Differential:
Model: See model number
(025, 031) Progressive by SP from 0.05" to 0.3" WC:
(092) Progressive by SP from 0.05" to 0.2" WC:

Reset Automatic: reset by differential

Visual Indication: None

Sensor Type: Silicone Diaphragm

Operating Pressure Range: 0.15 to 5" WC

Overpressure: (Burst) 13.8" WC (3.45 kPa)

Max Operating Pressure: (Proof) 13.8" WC (3.45 kPa)

Operating Temperature: -40° to 180°F (-40 to 82°C)

Operating Humidity: 10 to 90% Non-condensing

Wetted Parts: Silicone

Media Compatibility: Inert dry air

Process Connection: Tri-Barb (1/8", 1/4", 5/16") tubing or 1/4" comp.

Wiring Terminations: 3 Terminals (SPDT)

Mounting: Vertical bracket, 4 slots 0.2" x 0.3.9" (0.5 x 1 cm)

Enclosure Rating: Zink-plated steel, NEMA 1

Dimensions: 4.63"W x 4.1"H x 2.7"D, (11.7 x 10.4 x 6.7 cm)

Weight: 0.9 lb (0.4 kg)

Approvals: UL File #MH6213, CSA

Warranty: 2 year
