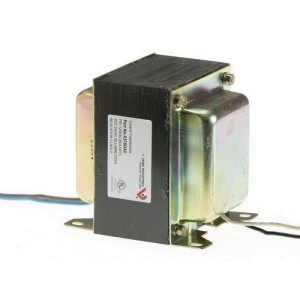

Large rectangular transformer with a black center section and shiny metal covers on the sides; wires protrude from either end.

X375DAC | Veris | Power Supplies

120 VAC Primary 24 VAC Secondary Standard Control Transformer with, Foot, 375 VA

Brand:Veris

MPN:X375DAC

SKU:X375DAC

List Price:

$272.00

Today's Price:

$141.44

product datasheet

installation instructions

catalog page

Lead time of 8 days. Chat with Kele experts now

product specifications

VA Rating

375 VA

Termination

Leads

Type

Closed

Over Current Protection

None

Primary Voltage

120 VAC

Secondary Voltage

24 VAC

Application

Power Controller,Powering Sensors,Driving Relays,Driving Digitals I/O Circuits

Mount

Foot

product series specifications

Supply Voltage: 27 to 28 VAC

Frequency: 50/60 Hz

Wire Length: 8.0 (20.3 cm)

Operating Temperature: -40° to 149°F (-40° to 65°C)

Wire Type: UL 1015, 18 AWG (X085AAA, X375DAC have 14 AWG secondary wires)

Approvals: CE, UL File #E222742, RoHS

Warranty: 5 years

product series features

Multi-tap primary connection models
Color-coded lead wires
Manually resettable circuit breaker models
Threaded hub options maximize installation flexibility

more information & related documents

Series Description

Veris X Series Control Transformers are a convenient source of control power for HVAC control and building automation applications. A wide variety of UL-listed transformers are available with single and dual threaded hub mounting options. Multiple current limiting options are available, including a circuit breaker in some models.

Kele Description

TRANSFORMER, 375VA, 120VAC TO 24 VAC, FOOT/DUAL HUB MOUNT

Manufacturer

Veris
