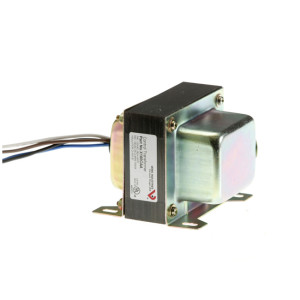

Control transformer with metal shield, iron core and colored wires on mounting bracket

X150CAA | Veris | Power Supplies

120 VAC Primary 24 VAC Secondary Standard Control Transformer with Circuit Breaker Protection, 1 Hub and Foot, 150 VA

Brand:Veris

MPN:X150CAA

SKU:X150CAA

List Price:

$150.00

Today's Price:

$78.00

product datasheet

installation instructions

catalog page

product specifications

VA Rating

150 VA

Termination

Leads

Type

Closed

Over Current Protection

Circuit Breaker

Primary Voltage

120 VAC

Secondary Voltage

24 VAC

Application

Power Controller,Powering Sensors,Driving Relays,Driving Digitals I/O Circuits,Voltage Reduction,Magnetic Switches

Mount

Foot,Single Hub

product series specifications

Supply Voltage: 27 to 28 VAC

Frequency: 50/60 Hz

Wire Length: 8.0 (20.3 cm)

Operating Temperature: -40° to 149°F (-40° to 65°C)

Wire Type: UL 1015, 18 AWG (X085AAA, X375DAC have 14 AWG secondary wires)

Approvals: CE, UL File #E222742, RoHS

Warranty: 5 years

product series features

Multi-tap primary connection models
Color-coded lead wires
Manually resettable circuit breaker models
Threaded hub options maximize installation flexibility

more information & related documents

Series Description

Veris X Series Control Transformers are a convenient source of control power for HVAC control and building automation applications. A wide variety of UL-listed transformers are available with single and dual threaded hub mounting options. Multiple current limiting options are available, including a circuit breaker in some models.

Kele Description

TRANSFORMER, 150VA, 120 VAC TO 24 VAC, FOOT/SINGLE HUB MOUNT, CIRCUIT BREAKER

Manufacturer

Veris
