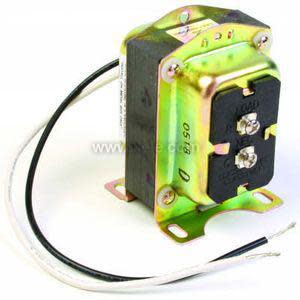

AT150A1007/U | Resideo | Power Supplies

Foot/Plate/Clamp/Panel Mount Transformer

Brand:Resideo

MPN:AT150A1007/U

SKU:AT150A1007

List Price:

$96.49

Today's Price:

$50.18

product datasheet

installation instructions

catalog page

11 in stock

product specifications

Application

Power Controller, Powering Sensors, Driving Relays, Driving Digitals I/O Circuits, Voltage Reduction, Magnetic Switches

Mount

Foot, Plate

Over Current Protection

None

Primary Voltage

120 VAC, 208 VAC, 240 VAC

Secondary Voltage

24 VAC

Termination

Screw Terminal

Type

Closed

VA Rating

50 VA

product series specifications

Primary Voltage: 120/208/240 VAC, 480 VAC, 277 VAC

Frequency: 60 Hz, 50/60 Hz

Secondary Voltage: 24 VAC

VA Rating: 40 VA, 50 VA, 48 VA

Wiring Terminations: Primary: 9" (22.8 cm) colored leads; Secondary: screw terminals, 12" (30.5 cm) colored leads

Dimensions: 3.12" H x 2.36" W x 3.19" D (7.92 x 6.05 x 8.10 cm), 2.38" H x 2.19" W X 2.8" D (6.05 x 5.55 x 7.11 cm)

Approvals: UL1585, UL5085-3 File #E14881; CSA, NEC Class 2 "not wet", Class 3 "wet", UL File #E14881; CSA, NEC Class 2 "not wet", Class 3 "wet"

Weight: 2 lb (0.91 Kg), 1.75 lb (0.79 Kg)

Warranty: 1 year

product series features

Meets NEC Class 2 in.not wet in. and Class 3 in.wet in. transformer requirements
Color-coded leads
Screw terminal secondary (AT140A, AT150A)
Models with multi-tap primary

more information & related documents

Series Description

The AT87A, AT140A, AT150A Class 2 control transformers are general purpose transformers that provide power to nominal 24 volt AC control circuits. They are typically used in heating and cooling control systems and Building Automation Systems, BAS. They also can be used in any application that does not exceed the load ratings. Each transformer model is UL listed or recognizes and meets NEC Class 2 in. not wet in. and Class 3 in. wet in. requirements.

Kele Description

TRANSFORMER, 50VA, 120/208/240 VAC TO 24 VAC, FOOT/PLATE MOUNT

Manufacturer

Resideo
