IP20 | Kele | Power Supplies

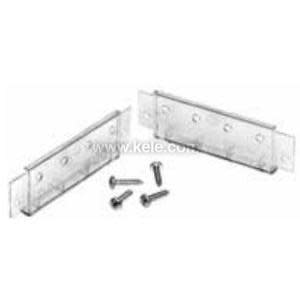

Terminal Covers (Two Covers Per Kit), Field Installed

Brand:Kele

MPN:IP20

SKU:IP20

List Price:

$78.00

Today's Price:

$40.56

product datasheet

catalog page

product specifications

Type

Accessories

product series specifications

Primary Voltage: 120/240 VAC, 50/60 Hz

Secondary Voltage: 24 VAC

VA Rating: 100 VA, 150 VA, 300 VA, 500 VA

Insulation Class: 221°F (105°C)

Terminals: Plated brass binder head screws

Temperature Rise: 131°F (55°C)

Mounting: Slotted feet

Weight: E100E: 4.2 lb (1.9 Kg), E150E: 8.0lb (3.6 Kg), E300E: 11.8 lb (5.4 Kg), E500E: 19 lb (8.6 Kg)

Approvals: UL506, UL5085-1 & 2 listed, File #E77014 CSA certified, File #LR14328-22

product series features

Precise spacing between interleaved windings for maximized voltage regulation
Oversized copper windings contribute to low temperature rise
Solid epoxy-encapsulation to dissipate heat efficiently and completely seal coil against moisture, dirt, and other airborne contaminants
Ten year warranty

more information & related documents

Series Description

The Model E100E, E150E, E300E, and E500E control transformers are premium performance, epoxy-encapsulated control transformers. They are designed to provide 24 volt AC control voltage from a 120/240 volt AC primary supply. These are used in temperature control systems, industrial applications and building automation systems, BAS. Able to meet high inrush loads while providing outstanding voltage regulation, these control transformers make operation more efficient because it is cooler. Each transformer features simple installation and wiring.

Kele Description

TERMINAL COVER KIT, FITS SOLAHD E SERIES TRANSFORMERS

Manufacturer

Kele
