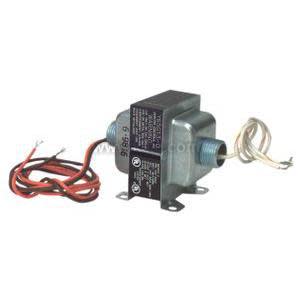

Y65G13-0 | Johnson Controls | Power Supplies
Isolation transformer, 24:24 VAC, 40 VA
Brand:Johnson Controls
MPN:Y65G13-0
SKU:Y65G13-0
product specifications
Application
Power Controller, Powering Sensors, Driving Relays, Driving Digitals I/O Circuits, Voltage Reduction, Magnetic Switches
Mount
Foot, Single Hub
Over Current Protection
Inherent
Primary Voltage
24 VAC
Secondary Voltage
24 VAC
Termination
Screw Terminal
Type
Closed
VA Rating
40 VA
product series specifications
Primary Voltage: 120/208/240 VAC, 24 VAC
Frequency: 60 Hz
Secondary Voltage: 24 VAC
VA Rating: 50 VA, 40 VA, 75 VA
Overload Protection: Circuit breaker, Internal
Lead Wires: 8" (20.3 cm), Primary: 8" (20.3 cm) Secondary: 30" (76.2 cm)
Operating Temperature: -10° to 104° (-40° to 40°)
Mounting: 4" x 4" plate, Foot, two hubs, Hub, 4" x 4" plate, Foot, hub
Dimensions: 2.5" x 3.0" x 3.5" (6.4 x 7.6 x 8.9 cm), 2.2" x 2.9" x 3.16" (5.6 x 7.4 x 9.1 cm), 2.5" x 3.3" x 4.2" (6.4 x 8.4 x 10.7 cm)
Approvals: UL Class 2, File #E25482, UL1585, UL5085-1 & 3 Class 2, Listed File #E25482
Weight: 3.0 lb (1.4 Kg), 2.0 lb (0.82 Kg)
Warranty: 1 year
product series features
- Color-coded leads
- Compact size
- Fully enclosed
- Meets UL1585, UL506, and C22.2 No.66
more information & related documents
Series Description
Models Y63, Y65, and Y66 Class 2 control transformers handle 24 volt AC power requirements from 40, 50, and 75 VA. These transformers are engineered for use in temperature control systems, industrial applications and building automation systems, BAS. For this transformer, typical applications include digital control, gas control, ignition systems, motor actuators, staging control, and other 24 volt AC control systems.
Kele Description
TRANSFORMER, 40VA, 24 VAC TO 24 VAC, FOOT/SINGLE HUB MOUNT, INHERENT
Manufacturer
Johnson Controls
Related Documents
Y63 Datasheet
