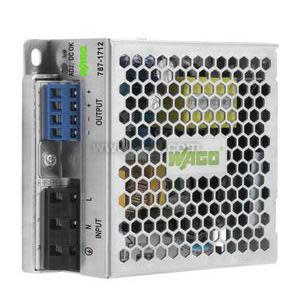

787-1712 | Wago | Power Supplies
Switched-Mode Power Supply; Eco; 1-Phase; 24 VDC Output Voltage; 2.5 A Output Current; DC-OK LED
Brand:Wago
MPN:787-1712
SKU:787-1712
List Price:
$191.00
Today's Price:
$99.32
Log in for customized pricingproduct specifications
Primary Voltage Input
90-264 VAC
DC Voltage Output Type
Adjustable
DC Voltage Output Range
24 VDC
Over Current Protection
Circuit Breaker
Display
LED
Enclosure Rating
IP20
DC Current Output
2.5 Amps
Application
Building Automation System,HVAC,BAS
Current Output
2.00 A, 2.50A
Mount
DIN rail
product series specifications
Nominal Input Voltage:
787-1702, 787-1712, 787-1722, 787-1732: 100 – 240 VAC
Input Voltage Range:
787-1702, 787-1712, 787-1722, 787-1732: 90 – 264 VAC; 125 – 375 VDC
Nominal Output Voltage, SELV:
787-1702, 787-1712, 787-1722, 787-1732: 24 VDC
Output Voltage Range:
787-1702, 787-1712, 787-1722, 787-1732: 22 – 26 VDC
Output Current:
787-1702: 1.25 A
787-1712: 2.5 A
787-1722: 5 A
787-1732: 10 A
Output Power:
787-1702: 30 W
787-1712: 60 W
787-1722: 120 W
787-1732: 240 W
Efficiency:
787-1702: 80% typ.
787-1712: 81% typ.
787-1722: 84% typ.
787-1732: 84% typ.
LED Indication:
787-1702, 787-1712, 787-1722, 787-1732: Green LED (DC OK)
Ambient Temperature:
787-1702, 787-1712, 787-1722, 787-1732: -20°C to 60°C
Dimensions (mm) W x H x L:
Height from upper-edge of DIN-35 rail:
787-1702: 99 x 90 x 30
787-1712: 99 x 90 x 40
787-1722: 99 x 130 x 60
787-1732: 99 x 165 x 70
product series features
- Primary switch mode power supply unit
- Protection class I
- Natural convection cooling when horizontally mounted
- Enclosed for use in switchgear cabinets
- Parallel operation, series connection possible
- Electrically isolated output voltage (SELV) acc. to EN 60950-1/UL 60950-1
- DIN-35 rail mountable in different positions
- Installation width (as delivered): 30 mm
- Direct installation on mounting plate via cable grip
more information & related documents
Series Description
The Wago ECO Power Supplies Series switched mode power supplies have multiple mounting options for ease of installation. As well as natural convection cooling when horizontally mounted. They meet UL60950 & UL508. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.
Kele Description
ECO POWER SUPPLY, 24VDC, 2.5A
Manufacturer
Wago
ECO Power Supply Brochure
