DCPA-1.2 | Kele | Power Supplies
Power Supply, 120 VAC In to 24 VAC/24 VDC Out
Brand:Kele
MPN:DCPA-1.2
SKU:DCPA-1.2
List Price:
$186.26
Today's Price:
$96.86
Log in for customized pricingproduct specifications
Application
Building Automation System, HVAC, BAS
Current Output
1.20 A
Mount
Snap Track, Panel
Over Current Protection
Fuse
Primary Voltage
24 VAC
Type
DC Power Supply
Primary Voltage Input
120 VAC
DC Voltage Output Type
Adjustable
DC Voltage Output Range
24 VDC
DC Current Output
1.2 Amps
product series specifications
Supply Voltage: 120 VAC
Output Voltage: 24 VAC 24 VDC (regulated) Adjustable 1.3-27 VDC
Supply Frequency: 50/60 Hz
Regulation: 1.5% @ full rated current
Output Current: Total combined current from both outputs not to exceed 1.2A @ 24V
Over Current Protection: 2.5A for combined outputs (GF-2.5 fuse)
Mounting: Snap-track (included)
Temperature Stability: 1%
Operating Temperature: 32° to 130°F (0° to 55°C)
Operating Humidity: 95% RH non-condensing
Dimensions: 3.0"H x 3.25"W x 6.0"L (7.62 x 8.26 x 15.24 cm)
Weight: 2.3 lb (1 Kg)
Warranty: 1 year
product series features
- 24 VAC and 24 VDC output from the same power supply
- LED indication of AC input and DC output status
- Overload protection
- Screw terminals with pressure plates
- Snap-track mounted
- Adjustable DC output
- Full-wave rectified
more information & related documents
Series Description

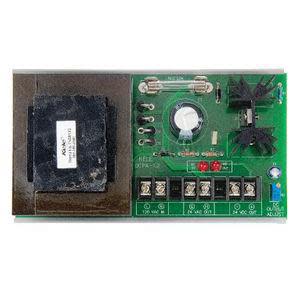

The DCPA-1.2 universal AC/DC power supply can deliver 30VA of power. This compact, track-mounted supply accepts 120 volt AC and delivers both 24 volt AC and regulated 24 volt DC power for control circuits, making it well suited to building automation systems, BAS, HVAC applications and industrial uses.
Kele Description
1.2 AMP DC & AC POWER SUPPLY
Manufacturer
Kele
