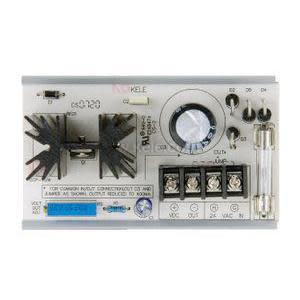

DCP-1.5-W-12VDC | Kele | Power Supplies
Power Supply, 24 VAC Input Voltage to 12 VDC Output Voltage, 1.5 A
Brand:Kele
MPN:DCP-1.5-W-12VDC
SKU:DCP-1.5-W-12VDC
List Price:
$64.83
Today's Price:
$33.71
product specifications
Application
Building Automation System, HVAC, BAS
Current Output
1.50 A
Mount
Snap Track, Panel Mount
Over Current Protection
Fuse
Primary Voltage
24 VAC
Type
DC Power Supply
Primary Voltage Input
24 VAC
DC Voltage Output Type
Adjustable
DC Voltage Output Range
12 VDC
DC Current Output
1.5 Amps
product series specifications
Supply Voltage: 24 VAC
Output Voltage: 24 VDC (full wave rectified and regulated), Adjustable 1.5 - 27 VDC (full wave rectified and regulated)
Supply Frequency: 50/60 Hz
Regulation: 1.5% at full rated current
Output Current: 1.5A (with 75 VA transformer)
Over Current Protection: 3A fuse (GF-3)
Mounting: Snap track (included)
Temperature Stability: 1%
Operating Temperature: 32° to 130°F (0° to 55°C)
Operating Humidity: 95% RH non-condensing
Dimensions: 1.63"H x 2.19"W x 4.0"D (4.13 x 5.56 x 10.16 cm)
Weight: 0.4 lb (0.18 Kg)
Warranty: 1 year
product series features
- Low cost
- Regulated DC output
- Snap-track mounted
- Screw terminals with pressure plates
- Adjustable DC output
- Full-wave rectified
more information & related documents
Series Description
The Kele DCP-1.5-W is a regulated 1.5A power supply that accepts 24 VAC at the input and provides 24 VDC at the output. The DCP-1.5-W can be ordered with any output voltage from 1.5V to 27 VDC. Field voltage adjustments may also be made using only a screwdriver. The power supply is provided with a mounting track for easy field application. This low cost power supply features good regulation and has full overcurrent protection.
Kele Description
1.5A DC POWER SUPPLY-CUSTOM CALIBRATED TO 12VDC
Manufacturer
Kele
