PS5R-VB12 | IDEC | Power Supplies
POWER SUPPLY 15W 12VDC DIN COMPACT SIZE
Brand:IDEC
MPN:PS5R-VB12
SKU:PS5R-VB12
product specifications
Mount
DIN Rail Mount
Output Voltage
12 VDC
Primary Voltage
85-264 VAC
Type
Enclosed Power Supply
Primary Voltage Input
85-264 VAC
DC Voltage Output Type
Fixed
DC Voltage Output Range
12 VDC
DC Current Output
1.2 Amps
product series specifications
Supply Voltage: 85-264 VAC nominal, 100-370 VDC
Output Voltage: 5, 12 or 24 VDC
Supply Current: 0.65 - 10A
Supply Frequency: 50/60 Hz
Output Current: 10 - 240W
Over Current Protection: 105% auto-reset
Load Regulation: 2.5% maximum
Ripple: 8% max peak to peak (including noise)
Operating Temperature: -13° to 149°F (-25° to 65°C) min.
Operating Humidity: 20% to 90% RH non-condensing
Connections: Spring loaded, finger safe terminals with captive M3.5 screws
Mounting: DIN rail/surface mount
Approvals: CE, CSA, RoHs, UL File #E457154 & E177168
Warranty: 1 year
product series features
- Small size to save panel space
- DIN rail/surface mount enclosure
- Slim-line models to save valuable panel space
- High efficiency operation for minimizing heat generation in control panels
- Time-saving, spring-loaded screw terminals
- One year warranty
more information & related documents
Series Description

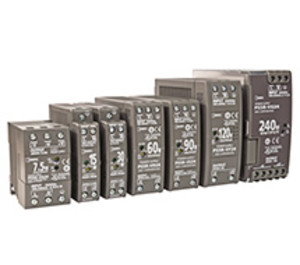

The Idec PS5R-V Series of switching and linear power supplies is available with an output of 12 or 24 VDC and output power from 7.5-480W. The output is short circuit protected and regulated. These switching power supplies, which minimize the heat generated in control panels, have a much higher efficiency than linear power supplies. They are small and completely enclosed, and they can be DIN rail or surface mounted.
Kele Description
POWER SUPPLY 15W 12VDC DIN COMPACT SIZE
Manufacturer
IDEC
Related Documents
PS5R-V Instruction Sheet
