DTK-MRJETHS | Ditek | Power Monitoring & Protection

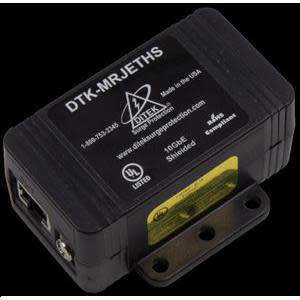

The DITEK Single channel DTK-MRJETHS provides IP surge protection for shielded CAT5e, CAT6 and CAT6A data lines to vital business equipment such as data networks, POS terminals, ATMs and IP video cameras. This device is a sutiable replacement for the DTK-MRJ45C5E.

Brand:Ditek

MPN:DTK-MRJETHS

SKU:DTK-MRJETHS

List Price:

$137.60

Today's Price:

$71.55

5 in stock

product specifications

Mount

DIN rail

Number of Circuits

1

Operating Voltage

75 V

product series specifications

Service Voltage: 120 VAC

Frequency: 0 Hz- 400 Hz

Filtering: RFI/EMI noise

Continuous Current: Unlimited

Protection: 700 V L-N, L-G or 600V N-G

Clamping Level: 130 VRMS/185V peak

Surge Current: 19,500A

Response Time: <1 ns

Connections: 3/4" hub-mount 3-12 AWG leads

Dimensions: 2.9"H x 2.8"W x 1.7"D (7.3 x 7.1 x 4.3 cm)

Weight: 0.5 lb (0.22 kg)

Approvals: UL 1449, IEEE C62.41B, File #E136659

Warranty: 10 years

product series features

  • Compact, parallel mounted 120VAC/20A protection for a wide variety of industrial control applications (BAS Contractors)
  • Ideal for use in UL 508A panels, SCADA systems, water treatment facilities and industrial control panels
  • Diagnostic LED, small footprint, and weatherproof enclosure

more information & related documents

Series Description

The Ditek DTK-120HW was designed and manufactured to meet the standards of the life safety industry. This compact, parallel-mount surge protector is widely used to protect fire alarm panels and other dedicated branch circuit loads. The new DTK-120HWLOK includes an NFPA 72 2013 10.6.5.2 compatible lockout kit to prevent accidental disconnect of the fire alarm system.

Kele Description

SHIELDED GIGABIT ETHERNET SURGE PROTECTION

Manufacturer

Ditek
