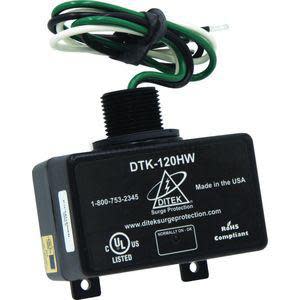

782980500243 | Ditek | Power Monitoring & Protection
120VAC in-Line Surge
Brand:Ditek
MPN:782980500243
SKU:DTK-120HW
product specifications
Indication
LED
Mount
Hub
Type
120V
Number of Circuits
1
Operating Voltage
120 V
product series specifications
Service Voltage: 120 VAC
Frequency: 0 Hz- 400 Hz
Filtering: RFI/EMI noise
Continuous Current: Unlimited
Protection: 700 V L-N, L-G or 600V N-G
Clamping Level: 130 VRMS/185V peak
Surge Current: 19,500A
Response Time: <1 ns
Connections: 3/4" hub-mount 3-12 AWG leads
Dimensions: 2.9"H x 2.8"W x 1.7"D (7.3 x 7.1 x 4.3 cm)
Weight: 0.5 lb (0.22 kg)
Approvals: UL 1449, IEEE C62.41B, File #E136659
Warranty: 10 years
product series features
- Compact, parallel mounted 120VAC/20A protection for a wide variety of industrial control applications (BAS Contractors)
- Ideal for use in UL 508A panels, SCADA systems, water treatment facilities and industrial control panels
- Diagnostic LED, small footprint, and weatherproof enclosure
more information & related documents
Series Description
The Ditek DTK-120HW was designed and manufactured to meet the standards of the life safety industry. This compact, parallel-mount surge protector is widely used to protect fire alarm panels and other dedicated branch circuit loads. The new DTK-120HWLOK includes an NFPA 72 2013 10.6.5.2 compatible lockout kit to prevent accidental disconnect of the fire alarm system.
Kele Description
120VAC IN-LINE SURGE
Manufacturer
Ditek
DTK HW Series DS R13
