SPM-UNI-KIT | Setra | Power Monitoring & Protection

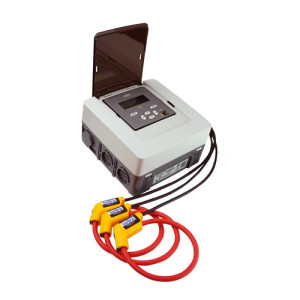

UNIVERSAL POWER MONITOR KIT FOR UP TO 600V AND UP TO 5000 AMPS. INCLUDES METER AND 3 RO-COILS
Brand:Setra
MPN:SPM-UNI-KIT
SKU:SPM-UNI-KIT
product series specifications
Service Type: Single phase, split phase, three phase-four wire (WYE), three phase-three wire (Delta)
Power: Self powered from Vin1 L1 and L2, 80-600 VAC RMS CAT III 50/60 Hz, 5W max
AC Protection: 0.5A fuse 200 kA interrupt capacity
Voltage Inputs: 80-347 VAC line-to-neutral, 80-600 VAC line-to-line, CAT III Power Meter 12 & 48 have two sets voltage inputs
Current Inputs: 3, 12, or 48 CT inputs; Split/ solid core CT: Configurable up to 2 volts;
Rogowski coil: Patrol Flex
Maximum Current Input: 150% of CT rating (mV CTs) to maintain accuracy. Measure up to 6,000 A with Patrol Flex Rogowski coils
Approvals: CE, RoHS
product series features
- Monitor 3, 12, or 48 loads on any combination of single and/or three
- phase systems
- Monitor voltage, current, power, energy, and many other parameters
- Rotatable display to simplify installation
- Line-powered, 80-600V phase-to-phase power supply with 200kAIC internal fuse
- ANSI C12.20-2015 Class 0.2 revenue-grade metering
- UL 94-V0 rated enclosure
- Can be used on both BACnet and Modbus protocols and features 2 pulse inputs one pulse output ports, plus serial and Ethernet
- Use both conventional and Rogowski coil CTs interchangeably
- 4-line Display shows real-time information about meter configuration and data
- CT polarity correction ensures proper CT installation
- UL listed
- Floating point, IEEE-754 data format allows for bidirectional monitoring
more information & related documents
Series Description
The Power Meter from Setra is a networked revenue grade power meter built on a versatile and powerful platform designed to meet the high demands for any sub-metering application. Available in a 3, 12 or 48 load configurations, the meter enclosure & intuitive web portal interface significantly reduce installation time and cost per metering point. The Power Meter 12 & 48 load meters come standard with dual voltage inputs, and all versions are field configurable for use of standard or Rogowski style current transformers, enabling safe and accurate measurement of both low and high amperage services.
Kele Description
UNIVERSAL POWER MONITOR KIT FOR UP TO 600V AND UP TO 5000 AMPS. INCLUDES METER AND 3 RO-COILS
Manufacturer
Setra
Setra 2019 PICS Statement
