UCT-0500-060 | Magnelab | Power Monitoring & Protection
SOLID CORE; 60A:0.333VAC; .50" OPENING
Brand:Magnelab
MPN:UCT-0500-060
SKU:UCT-0500-060
List Price:
$68.21
Today's Price:
$35.47
Log in for customized pricingproduct specifications
Output
0.333 V
Type
Solid Core
Rated Current
60 A
Window Size
0.5 in
product series specifications
Primary: 5A to 400A, 250A to 5000A
Secondary: 0 - 0.333V, 0-0.333 V
Frequency: 50 to 10,000 Hz
Insulation Class: 600V
Accuracy: ±1%; Accuracy at 10% to 130% of rated current
Lead Wires: 8' twisted pair leads
Weight: 0.4 lb (0.18 kg)
Approvals: CE, UL recognized File #E96927
RoHS Statement: Yes
Warranty: 1 year
product series features
- Rated input current from 5A to 400A
- Phase angle less than 1 degrees measured at 50% rated current
- 8 ft. twisted-pair lead
- UL recognized
more information & related documents
Series Description

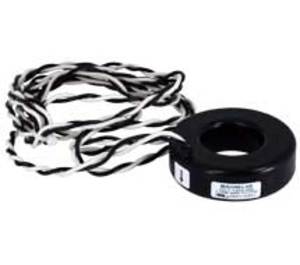

The UCT Series of solid core current sensors provide a low voltage (0.333V) output proportional to line current and is used in conjuction with the endicator™ power monitoring meter. These are often referred to as in.safe in., the mV output eliminates theneed for shorting switches. The rugged epoxy encapsulated construction comes with 8-foot twisted leads.
Kele Description
SOLID CORE; 60A:0.333VAC; .50" OPENING
Manufacturer
Magnelab
UCT-0300 Spec Sheet
