SCT-0750-010 | Magnelab | Power Monitoring & Protection
SPLIT CORE CT, 10A:0.333V RATIO; .75 X .75 WINDOW
Brand:Magnelab
MPN:SCT-0750-010
SKU:SCT-0750-010
List Price:
$142.00
Today's Price:
$73.84
Log in for customized pricingproduct specifications
Output
0.333 V
Type
Split Core
Rated Current
10 A
Window Size
0.75 in
product series specifications
Primary Current: 5-3000A (see Ordering Information)
Secondary Voltage: 0-0.333 VAC, 0% to 100% rated current
Frequency: 50-400 Hz
Insulation Class: 600V
Accuracy: ±1%, (10% to 130% rated current)
Lead Wires: 8' (2.44m) twisted pair leads, 22 AWG
Weight: 1 lb (0.45Kg) maximum
Approvals: UL recognized component File #E96927 CE, RoHS
Warranty: 3 years
product series features
- Millivolt output (0-0.333V)
- Split-core design
- Low-cost
- No need for shorting switches
more information & related documents

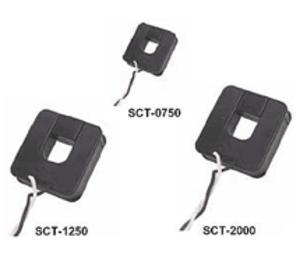

Series Description
The Magnelab SCT Series of current transformers provides a low-voltage (0-0.333 V) output proportional to line current and is used in conjunction with the endicator™ and other meters to monitor electrical power systems. Often referred to as 'Safe CTs,' the mV output of these current transformers eliminates the need for shorting switches, and their split-core design makes them easy to install.
Kele Description
SPLIT CORE CT, 10A:0.333V RATIO; .75 X .75 WINDOW
Manufacturer
Magnelab
SCT-0750 Spec Sheet
