ROPE-48-100A-07MV | Instrument Transformers | Power Monitoring & Protection

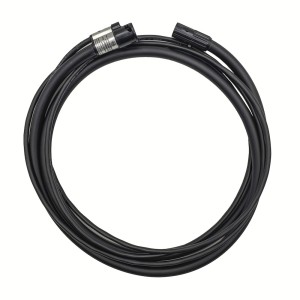

CURRENT TRANSFORMER, ROGOWSKI COIL, 10,000 AMP PRIMARY INPUT, 70MV OUTPUT
Brand:Instrument Transformers
MPN:ROPE-48-100A-07MV
SKU:ROPE-48-100A-07MV
List Price:
$608.00
Today's Price:
$316.16
Log in for customized pricingproduct specifications
Output
70 mV
Type
Rocoil
Rated Current
10,000 A
Window Size
15.3 in
product series specifications
Environment: Indoor Use Only
Primary Input: Varies by Model (See Data Sheets)
Secondary Output: 0.333 VAC
Accuracy: Varies by Model (See Data Sheets)
Linearity: 10% - 120%
Max Sense Voltage: 600 VAC
Approvals: ETL Listed, CE, RoHS
Warranty: 5 years
product series features
- Breakdown of Models / Types:
- Enclosed Self-Powered Split Core Models: 5, 25, 50, 100 Amp with 333 mV Output
- Enclosed Self-Powered Revenue Grade Split Core Models: 100, 200, 400 and 600 Amp with 333 mV Output
- Enclosed Self-Powered Solid Core Models: 5, 30, 60 Amp with 333 mV Output
- Enclosed Self-Powered Revenue Grade Solid Core Model: 100 Amp with 333 mV Output
- MOD: DIN Rail Mount 1, 2, and 3 Phase Rogowski Coil CT Integrators
- ROPE: 4000, 6000, 8000, and 10,000 Amp Revenue Grade Rogowski Coil CT with 70mV Output
more information & related documents
Series Description
With the release of its RIBPM413-BC Power Meter, Functional Devices launched a complementary line of Current Transfomers (CTs) that can be used with the new Power Meter or other applications in need of a CT. This Series includes several Split-Core, Solid Core, Rogowski Coil and Rope CT models with a variety of amperages and outputs. The “25”, “50”, or “100” in the model name represents the maximum amount of current the CT can sense. The “333” represents the analog output setting. Each of these models will output a 0 to 0.333V analog signal, which is the required input for the RIBPM413-BC Power Meter. The analog output can be changed to other values within the mV, V, or mA ranges if needed (i.e. 0-5V, 4-20mA, etc.) for other applications.
Kele Description
CURRENT TRANSFORMER, ROGOWSKI COIL, 10,000 AMP PRIMARY INPUT, 70MV OUTPUT
Manufacturer
Instrument Transformers
CTA0_SERIES
