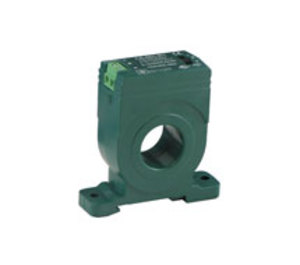

* product series image displayed

CS-650-R1 | Greystone Energy Systems | Power Monitoring & Protection

CURSENSORSOLID 0-10/20/50 AMPS 0-5 VDC OUT

Brand:Greystone Energy Systems

MPN:CS-650-R1

SKU:CS-650-R1

List Price:

$103.00

Today's Price:

$53.56

product series specifications

Frequency: 50/60Hz

Insulation Class: 600VAC, Insolated Conductors

Accuracy: ±2% FSO (5-100% of range)

Response Time: 200mS Typical, 0-90%

Operating Temperature: -15 to 60°C (5 to 14°F)

Operating Humidity: 5 to 90% RH non-condensing

Dimensions: 2.65 x 2.7 x 0.95 inches (67 x 68.6 x 24.1 mm)

Enclosure Rating: ABS/PC, UL94 V-0

Sensor Power Source: Self-powered

Signal Output: CS-650 0-5VDC, CS-651 0-10VDC, CS-652 4-20mA

product series features

No field adjustment necessary, factory calibrated
Input/Output isolation via current transformer
Solid-state reliability
CS-652 models averge measurement is equivalent to True RMS for pure sine waves

more information & related documents

Series Description

The CS65X Series current sensors monitor line current for electrical loads such as pumps, conveyors, machine tools,or fans and output an analog signal to represent the load current. The CS650/651 require no external power as they are totally powered by induction from the AC line beingmonitored. The CS652 is loop-powered. The sensors are typically used to monitor motor operation and can be used to determine motor failure, belt loss,machine feed rates or tool wear.

Kele Description

CUR SENSOR SOLID 0-10/20/50 AMPS 0-5 VDC OUT

Manufacturer

Greystone Energy Systems
