CT-R24-A4U | Dent Instruments | Power Monitoring & Protection

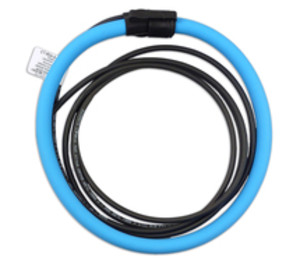

4000A, 24IN ROCOIL ROGOWSKI CT (7.5IN OPENING), 3M LEAD
Brand:Dent Instruments
MPN:CT-R24-A4U
SKU:CT-R24-A4U
List Price:
$354.00
Today's Price:
$184.08
Log in for customized pricingproduct specifications
Type
Rocoil
Output
131 mV
Rated Current
5,000 A
Window Size
7 in
product series specifications
Current Range: 5-5000 AC
Frequency: 20 Hz to 5 kHz
Working Voltage: 1000Vrms maximum
Lead Wires: 28’ (2.4M), 22 gage 600V
Window Size: 11.5 cm (4.5"), 17.9 cm (7.0")
Materials Of Construction: Blue thermoplastic rubber, flame retardant UL 94 V-0 rated
Weight: .40 lbs
Approvals: UL STD 61010-1, CAN/CSA STD C22.2 No. 61010-1
Warranty: 1 year
product series features
- Flexible, non-intrusive measurement
- Ability to measure where conventional rigid core CT's aren't suitable
more information & related documents
Series Description
The Dent Instruments CT-CTR Series are current transformers that have been designed for accurate non-intrusive measurement of AC current, pulsed DC or distorted waveforms where conventonal rigid core CTs are unsuitable. This type of sensor may be used to measure AC current over a wide dynamic range and from 20 Hz to 5 kHz. Some applicatons may require use of integrator/amplifier.
Kele Description
4000A, 24IN ROCOIL ROGOWSKI CT (7.5IN OPENING), 3M LEAD
Manufacturer
Dent Instruments
Related Documents
ROCOIL SERIES_DATASHEET
