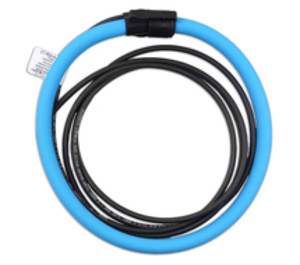

* product series image displayed

CT-R16-A4U-7M | Dent Instruments | Power Monitoring & Protection

4000A, 16IN ROCOIL ROGOWSKI CT (5IN OPENING), 7M LEAD

Brand:Dent Instruments

MPN:CT-R16-A4U-7M

SKU:CT-R16-A4U-7M

List Price:

$-.--

Today's Price:

$-.--

product datasheet

product specifications

Type

Rocoil

Output

131 mV

Rated Current

5,000 A

Window Size

4.5 in

product series specifications

Current Range: 5-5000 AC

Frequency: 20 Hz to 5 kHz

Working Voltage: 1000Vrms maximum

Lead Wires: 28’ (2.4M), 22 gage 600V

Window Size: 11.5 cm (4.5"), 17.9 cm (7.0")

Materials Of Construction: Blue thermoplastic rubber, flame retardant UL 94 V-0 rated

Weight: .40 lbs

Approvals: UL STD 61010-1, CAN/CSA STD C22.2 No. 61010-1

Warranty: 1 year

product series features

Flexible, non-intrusive measurement
Ability to measure where conventional rigid core CT's aren't suitable

more information & related documents

Series Description

The Dent Instruments CT-CTR Series are current transformers that have been designed for accurate non-intrusive measurement of AC current, pulsed DC or distorted waveforms where conventonal rigid core CTs are unsuitable. This type of sensor may be used to measure AC current over a wide dynamic range and from 20 Hz to 5 kHz. Some applicatons may require use of integrator/amplifier.

Kele Description

4000A, 16IN ROCOIL ROGOWSKI CT (5IN OPENING), 7M LEAD

Manufacturer

Dent Instruments
