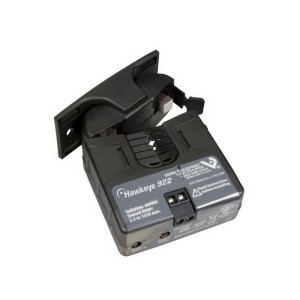

Black current sensor labeled Hawkeye 922 with a hinged opening mechanism and mounting bracket.

H922030A | Veris | Power Monitoring & Protection

Current Sensor, 0-30A, Split Core, 0-5V Out

Brand:Veris

MPN:H922030A

SKU:H922030A

List Price:

$145.00

Today's Price:

$75.40

product datasheet

installation instructions

product specifications

Core Type

Split

Type

Split Core

Connection

Terminals

Output

0 - 5 VDC

Analog Output

0 - 5 VDC

Window Size

0.8 in

Current Range

0 - 30 A

product series features

Self-powered analog current sensor simplifies installationNo external power required for sensor...eliminate power supplies
Self-gripping split-core for fast retrofit installation... no need to remove conductor (H922)
Economical solid-core models feature adjustable bracket for easy alignment
No jumpers on unit...reduces installation error
Selectable factory calibrated ranges for increased flexibility and resolutionSome models available with three field-selectable ranges per unit... fewer versions to choose from, stock, and install
Removable mounting bracket for installation flexibility
100% solid state, no moving parts to fail
5-year limited warranty

more information & related documents

Series Description

The Hawkeye 722, 822, and 922 provide accurate load trending information with a proportional 0-5VDC ouput signal. Slide-switches provide easy field selection of monitored amperage range without jumpers (available on most models).

Kele Description

CURR SENSOR, 0-30A, SPLIT CORE, 0-5V OUT

Manufacturer

Veris
