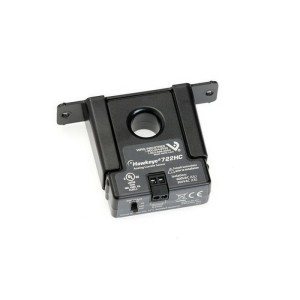

Black square current sensor with central hole, calibration dial and mounting tabs.

H722HC | Veris | Power Monitoring & Protection

Current Transducer, 0-50/100/200A, Solid Core, 0-5V Out

Brand:Veris

MPN:H722HC

SKU:H722HC

List Price:

$159.00

Today's Price:

$82.68

product datasheet

installation instructions

product specifications

Type

Solid Core

Connection

Terminals

Output

0 - 5 VDC

Analog Output

0 - 5 VDC

Window Size

0.7 in

Current Range

0 - 200 A

product series features

Self-powered analog current sensor simplifies installationNo external power required for sensor...eliminate power supplies
Self-gripping split-core for fast retrofit installation... no need to remove conductor (H922)
Economical solid-core models feature adjustable bracket for easy alignment
No jumpers on unit...reduces installation error
Selectable factory calibrated ranges for increased flexibility and resolutionSome models available with three field-selectable ranges per unit... fewer versions to choose from, stock, and install
Removable mounting bracket for installation flexibility
100% solid state, no moving parts to fail
5-year limited warranty

more information & related documents

Series Description

The Hawkeye 722, 822, and 922 provide accurate load trending information with a proportional 0-5VDC ouput signal. Slide-switches provide easy field selection of monitored amperage range without jumpers (available on most models).

Kele Description

CURR XDUCR, 0-50/100/200A, SOLID CORE, 0-5V OUT

Manufacturer

Veris
