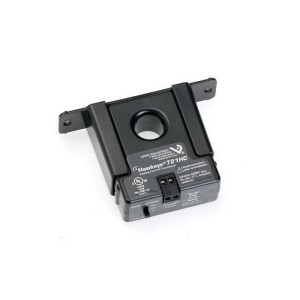

H721HC | Veris | Power Monitoring & Protection

Current Transducer, 0-50/100/200A, Solid Core, 4-20mA Out

Brand:Veris

MPN:H721HC

SKU:H721HC

List Price:

$185.00

Today's Price:

$96.20

product datasheet

installation instructions

Lead time of > 15 days. Chat with Kele experts now

product specifications

Connection

Terminals

Output

4 - 20 mA

Type

Solid Core

Current Range

0 - 200 A

Analog Output

4 - 20 mA

Window Size

0.8 in

product series features

Loop powered analog current sensor simplifies installationPower the sensor, and receive the signal with only two wires... lower cabling and commissioning costs than with traditional 3-wire sensors
Self-gripping split-core for fast retrofit installation...no need to remove conductor (H921)
Economical solid-core features adjustable bracket for easy alignment
Selectable factory calibrated ranges for increased flexibility and resolutionFactory calibrated switch-selectable ranges for high resolution and installation ease
Three field-selectable ranges per unit... fewer versions to choose from, stock, and install
Removable mounting bracket for installation flexibility
100% solid state, no moving parts to fail
5-year limited warranty

more information & related documents

Series Description

The Hawkeye 721LC, 721HC, & 921 provide accurate load trending information with a proportional 4-20mA output signal. Preset slide switches provide easy field setup of sensed amperage range with no need for jumpers.

Kele Description

CURR XDUCR, 0-50/100/200A, SOLID CORE, 4-20MA OUT

Manufacturer

Veris
