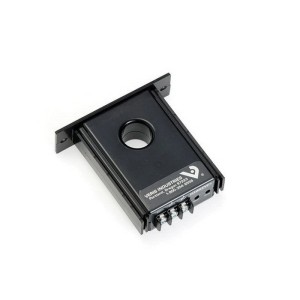

H720 | Veris | Power Monitoring & Protection

Current Transducer, 0-200A, Solid Core, 4-20mA Out, Varible Frequency Drive

Brand:Veris

MPN:H720

SKU:H720

List Price:

$316.00

Today's Price:

$164.32

Lead time of > 15 days. Chat with Kele experts now

product datasheet

installation instructions

product specifications

Type

Solid Core

Current Range

0 - 200 A

Analog Output

4 - 20 mA

Window Size

0.7 in

product series features

Loop powered analog current sensor simplifies installationPower the sensor, and receive the signal with only two wires... lower cabling and commissioning costs than with traditional 3-wire sensors
Self-gripping split-core for fast retrofit installation...no need to remove conductor (H921)
Economical solid-core features adjustable bracket for easy alignment
Selectable factory calibrated ranges for increased flexibility and resolutionFactory calibrated switch-selectable ranges for high resolution and installation ease
Three field-selectable ranges per unit... fewer versions to choose from, stock, and install
Removable mounting bracket for installation flexibility
100% solid state, no moving parts to fail
5-year limited warranty

more information & related documents

Series Description

The Hawkeye 721LC, 721HC, & 921 provide accurate load trending information with a proportional 4-20mA output signal. Preset slide switches provide easy field setup of sensed amperage range with no need for jumpers.

Kele Description

CURR XDUCR, 0-200A, SOLID CORE, 4-20MA OUT, VFD

Manufacturer

Veris
