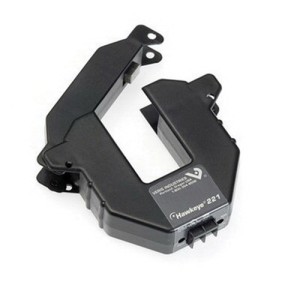

H221 | Veris | Power Monitoring & Protection

Current Transducer, 0-100/300A, Split Core, 4-20mA Out

Brand:Veris

MPN:H221

SKU:H221

List Price:

$-.--

Today's Price:

$-.--

product datasheet

installation instructions

Lead time of 0 days. Chat with Kele experts now

product specifications

Connection

Terminals

Output

4 - 20 mA

Type

Split Core

Current Range

0 - 300 A

Analog Output

4 - 20 mA

Window Size

1.6 in

product series features

Monitor larger motors and other loads up to 2400ASplit-core design for easy installation and fast retrofits
Eliminates need for external CTs on large conductors
Large openings for heavy conductors
Monitor critical motors (compressor, fuel, etc.)
Loop powered 4-20mA outputTwo-wire design reduces wiring cost
Zero and span adjustments for easy setup and high resolution
100% solid state...no moving parts to fail
5-year limited warranty

more information & related documents

Series Description

Hawkeye 221,321 and 421 analog current transducers provide reliable load trending information for large motor loads (up to 2400A), with a proportional 4-20mA signal. The span protentiometer allows each sensor to be calibrated for maximum resolution.

Kele Description

CURR XDUCR, 0-100/300A, SPLIT CR, 4-20MA OUT

Manufacturer

Veris
