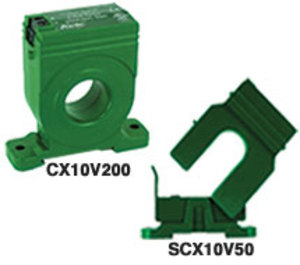

* product series image displayed

SCX10V200 | Kele | Power Monitoring & Protection

CURR XDUCR, 0-200A, SPLIT CORE, 0-10VDC OUT

Brand:Kele

MPN:SCX10V200

SKU:SCX10V200

List Price:

$131.00

Today's Price:

$68.12

catalog page

product specifications

Type

SPLIT CORE

Analog Output

0 - 10 VDC

Window Size

0.8 in

Current Range

0 - 200 A

product series specifications

Frequency:

CX: 40-100 HZ

SCX:50-100 Hz

Measurement Range:Up to 200 Amps

Output:0-5 VDC or 0-10 VDC @ 1 MΩ typical

Insulation Class:600 VAC, insulated conductors

Response Time:200 mS typical, 0-90%

Accuracy:

CX: ± 2% FSO (5-100% of range)

SCX: ± 2% FSO (10-100% of range)

Operating Temperature: 5° to 140°F (-15° to 60°C)

Operating Humidity: 5-90% RH, non-condensing

Enclosure Rating: NEMA 1, ABS/PC, UL94 V-0

Window Size: 0.8"(2.03 cm)

Termination: 14 to 22 AWG

Dimensions:

CX: 2.65" H x 2.6” W x 0.98" D (6.7 x 6.6 x 2.5 cm)

SCX: 3.05" H x 3.0" W x 0.98" D (7.8 x 7.6 x 2.5 cm)

Weight: 0.25 lb (0.11 kg)

Approvals: UL File #E339785, CE

Warranty: 5 years

product series features

May eliminate the need for current transformers
Small size
No power supply needed
Split-core model easily installed over existing cable
UL listed, CE certified

more information & related documents

Series Description

The Kele CX/SCX Series AC current transducer with voltage output can be used to directly monitor up to 200A and output a 0-5 or 0-10 volt DC signal. Well suited to building automation systems, BAS, the transducer is available in a split-core design that allows for easy installation on the existing wiring or in a lower cost solid-core version.

Kele Description

CURR XDUCR, 0-200A, SPLIT CORE, 0-10VDC OUT
