CSR-12VDC | Kele | Power Monitoring & Protection

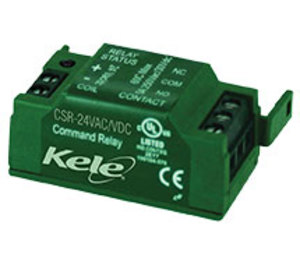

The Kele CSR-12VDC and CSR-24VAC/DC command relay attaches to the side of any full-size CS or SC type sensor or switch and adds a form C relay function. It provides line voltage switching with control either from an automation system digital output or from a CS/SC current switch. A status LED indicates the relay state and the relay output features both a normally-open and a normally-closed contact. The CSR-CS/SC combination provides a convenient solution when status indication and motor control are needed at a single location. The CSR can accept a digital control signal from the controller to activat the relay contacts which can be used to provide power to the motor contactor to start the motor. The CS/SC switch will then provide a digital proof-of-flow signal to the controller to indicate motor status.
