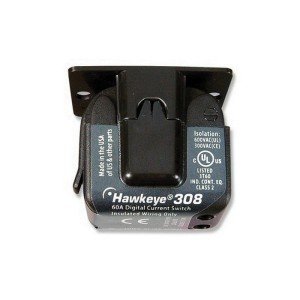

H308 | Veris | Power Monitoring & Protection
Current Switch, 0.75-50A, Adjustable, Split Core, LED
Brand:Veris
MPN:H308
SKU:H308
product specifications
Connection
Terminals
Mount
Split Core
Output Signal
Relay
Core Type
Split
Set Point Type
Adj.
Current Range
0.75 - 50 A
Trip Point Type
Adjustable
Contact Form
SPST
product series specifications
Supply Voltage: Induced from monitored conductor
Frequency Range: 50/60 Hz
Insulation Class: 600VAC RMS (UL), 300VAC RMS (CE)
Output: N.O. 1.0A @ 30 VAC/DC
Operating Temperature: 5° to 140°F (-15° to 60°C)
Operating Humidity: 10 to 90% RH, non-condensing
Enclosure Rating: NEMA 1
Mounting: foot
Window Size: 0.7" min.
Hysteresis: 10% (typical)
Termination: Max. Wire Size: 24-14 AWG (22-16 AWG for H308)
Torque: 4.0 in-lbs (7.0 in-lbs for H308)
Approvals: UL file #E150462, CE
Warranty: 5 years
product series features
- High performance devices in split- and solid-core housings
- Minimum trip point as low as 0.5A (H608) ... eliminates the need for multiple wraps of the conductor through the sensor even on loads as small as 1/5HP
- Small size... fits easily inside small enclosures
- Self-gripping iris on the split-core housing for easy installation
- Status LEDs for easy setup and local indication (no LED on the H701)
- 1 Amp status N.O. contact for increased application flexibility
- All devices are 100% solid state
- All devices are polarity insensitive
more information & related documents
Series Description
The Hx08 Series and H701 Series adjustable trip point and standard output current switches offer high performance for building automation systems, and industrial applications. With a wide array of amperage range options, these current switches can accurately detect belt loss, coupling shear, or other mechanical failure on loads from 1/5 to 100HP.
Kele Description
CURR SWITCH, 0.75-50A, ADJ, SPLIT CORE, LED
Manufacturer
Veris
Related Documents
Hawkeye x08 Series Datasheet
