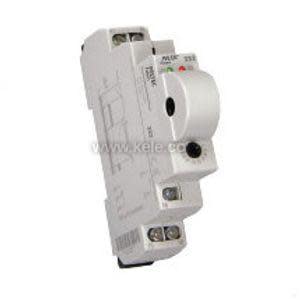

Narrow white DIN rail module with round adjustment dial and screw terminals.

332 | Peltec | Power Monitoring & Protection

1-20A Sensor 24-240VAC/24VDC Input, 8A Relay

Brand:Peltec

MPN:332

SKU:332

List Price:

$291.00

Today's Price:

$151.32

product datasheet

catalog page

product specifications

Type

DIN MOUNT

Contact Form

SPDT

Coil Voltage

24 VAC,120 VAC,240 VAC,208 VAC,24 VDC

Current Range

1 - 20 A

Trip Point Type

Fixed

product series specifications

Supply Voltage: 24-240 VAC, 24 VDC

Frequency: 50/60 HZ

Power Consumption (max): 1.5 VA

Current Range: 1-20 Amps

Setting Accuracy: 5%

Relay Output Form: SPDT

Rated Current: 8 Amps

Operating Temperature: -4° to 131°F (-20° to 55°C)

Storage Temperature: -22° to 158°F (-30° to 70°C)

Approvals: EN 60255-6, EN61010-1, UL #E352333, CE, RoHS

product series features

Current Toroid located in control, with easy access for connection
DIN rail mounting
Universal input 24-240 VAC and 24 VDC

more information & related documents

Series Description

The Peltec Timers 300 Series current sensors are designed for single-phase overcurrent monitoring. The setpoint is determined by a potentiometer, 1 to 20 Amps. The monitored current must not exceed 100 Amps. No shunt resistor is required.

Kele Description

1-20A SENSOR 24-240VAC/24VDC INPUT, 8A RELAY

Manufacturer

Peltec
