SENTRY SC225 | NK Technologies | Power Monitoring & Protection

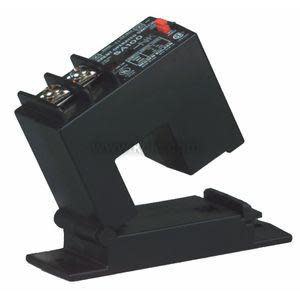

NK Split Current Switch, 1.5A Trip, Normally Open

Brand:NK Technologies

MPN:SENTRY SC225

SKU:SENTRY SC225

List Price:

$140.00

Today's Price:

$72.80

product datasheet

installation instructions

catalog page

12 in stock

product specifications

Mount

Split Core

Current Range

1 - 200 A

Trip Point Type

Fixed

Contact Form

SPST

product series specifications

Supply Voltage: 24 - 40 VDC

Frequency: 50 - 60 Hz

V Models: 10 - 400 Hz

Output: 4 - 20 mA, loop-powered

Output Impedance: 600O max @ 24 VDC

Insulation Voltage 600 VAC:

Accuracy: 1.0% FS

Response Time: 500 mS to 90% of step change

Overrange Limit: Sensor self-limits to 25 mA output

Terminations: Screw terminals

Materials Of Construction: UL 94 flammability rated thermoplastic

Weight: 1.3 lb (0.6 Kg)

Approvals: UL File #E129625, CE pending

Warranty: 5 years

product series features

Eliminates the need for a current transformer
Large aperture to accommodate large conductors or wire bundles
Loop powered 4-20 mA output
Multi-range input eliminates zero and span adjustments
Easy installation with integral mounting brackets

more information & related documents

Series Description

The Sentry 200-A Series high AC current transducers with current output can directly monitor up to 2000A without requiring an additional current transformer. Ideal for many applications in building automation systems, BAS, these transducers have an 4-20 mA signal output.

Kele Description

NK SPLIT CUR SW, 1.5A TRIP,N.O.

Manufacturer

NK Technologies
