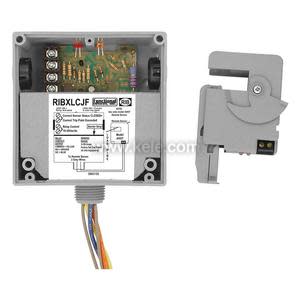

RIBXLCJF | Functional Devices | Power Monitoring & Protection

Frequency: 50/60 Hz

Switch Rating: 30 VAC/VDC @ 0.4A maximum

LED Indication: LED#1 ON Relay activated, LED#2 ON Current trip point exceeded

Response Time: 20mS

Relay:

Life Rating: 10 million cycles minimum

Mechanical:

Coil Pull In Voltage:

10 - 30 VAC/VDC Models: 9 VAC, 10 VDC

24 VAC/VDC Models: 18 VAC, 22 VDC

Coil Drop Out Voltage:

10-30 VAC/VDC Models: 2.1 VAC, 2.8 VDC

24 VAC/VDC Models: 3 VAC, 3.8 VDC

Off State Leakage:< .03 mA @ 30 VAC/VDC

On State Voltage Drop:<0.3 VAC/VDC @ 0.1A:, <1.6 VAC/VDC @ 0.4A:

Lead Wires: 16" (40.6 cm) 600V Rated

Operating Temperature: -30° to 140°F (-34° to 60°C)

Operating Humidity: 5 to 95% (non-condensing)

Dimensions:

Enclosure: 4"H x 4"W x 1.8"D, (10.2 x 10.2 x 4.6 cm), NEMA 1 with ½" NPT:

Solid Core: 1.86'' x 1.46'' (3 x 3.71 cm )

Split Core: 2.52'' x 2.0'' (6.4 x 5.08 cm)

Window Size:

Solid Core: 0.5'' (1.27 cm)

Split Core: 0.52'' x 0.52'' (1.32 x 1.32 cm)

Weight: 1 lb (0.45 kg)

Approvals: UL File #E68805, (UL 916) and #S7312 (UL 864), CE, RoHs

Warranty: 1 year
