RIBXGA | Functional Devices | Power Monitoring & Protection

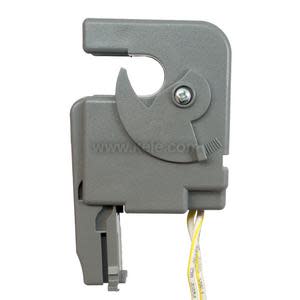

Split Core Adjustable Current Switch, 0.75-150 Amp, Wire Leads
Brand:Functional Devices
MPN:RIBXGA
SKU:RIBXGA
product specifications
Connection
Wire Leads
Mount
Split Core
Output Signal
Relay
Core Type
Split
Set Point Type
Adj.
Current Range
0.75 - 150 A
Trip Point Type
Adjustable
Contact Form
SPST
product series specifications
Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (non-condensing)
Max Sense Voltage: 600 Vac
Approvals: UL Listed, C-UL, CE, RoH, UL916, S (All models)
UL864, California State Fire Marshal (RIBXKTF, RIBXKTA)
Mounting/Installation: Removable mounting tab provided. The wire clamp locks against the wire
being monitored, securing the unit in place.
Sensor Contact Output: Current below threshold: Open; Current above threshold: Closed
Origin: Made of US and non-US parts
Sensor Contact: Solid State Contact
- When sensor contact is off (open), leakage <30 uA @ 30Vac/dc.
- When sensor contact is on (closed), voltage drop < .3 Vac/dc @ .1 Amp
< 1.6 Vac/dc @ .4 Amp
product series features
- Solid- and split-core switch models have fixed (go/no go) or adjustable trip points
- Solid-core transducer models have a 4-20 mA output
- Low cost
- Ratcheting cam clamp to secure switch to wire
- Removable mounting tab
more information & related documents
Series Description
The Functional Devices RIBXK, RIBXG, RIBXK420 Series include both current-operated switches and current transducers. Solid-core and split-core current-operated switch models have a solid-state switch that operates when the current level sensed by the internal current transformer exceeds a fixed or adjustable set point. Solid-core current transducer models output a 4-20 mA signal proportional to the line current being monitored.
Kele Description
SPLIT CURRENT SW, ADJ TRIP, WIRE LEADS, LEDS
Manufacturer
Functional Devices
RIBXG Install Sheet
